X550

X550

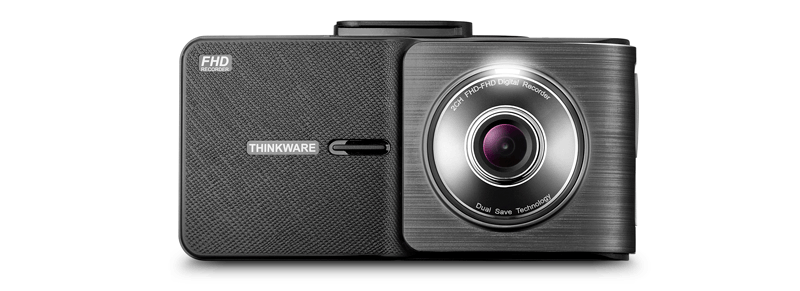

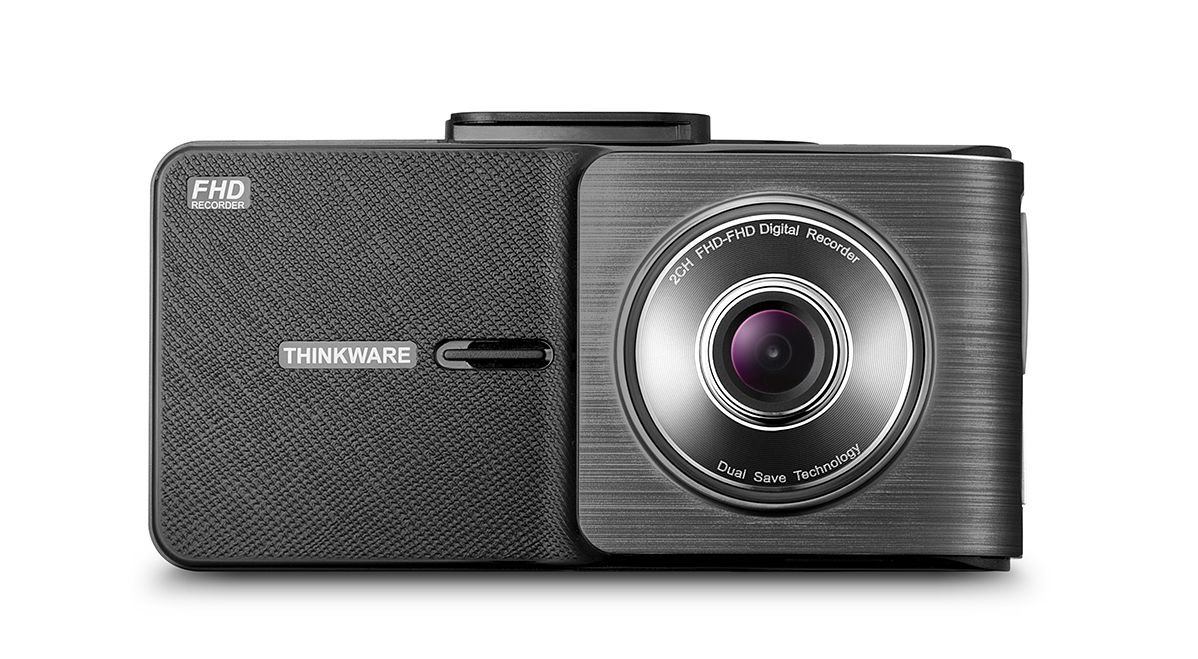

X550 epitomises power and sophistication at its finest. The Ambarella A7 Processor and Sony Exmor Sensors for front and rear cameras, enable it to record high definition 1080p wide-angle videos at 30 frames per second. Low light conditions aren’t an issue either as X550’s Super Night Vision 1.0 enhances recordings in dark environments during park mode. X550 comes with a 2.7-inch display screen that lets you control, manage and tweak its settings based on your preferences and playback recordings as needed.




Dual Channel
Recording

Front-facing dashboard camera with rear camera input



*Rear Cam Sold Separately




High Definition
Video Recording

Clear and crisp video files be it daytime or nighttime



*Rear Cam Sold Separately




State of the Art
Video Enhancement

Wide Dynamic Range (WDR) | Nighttime Picture Quality Correction | Automatic Exposure




140° Wide Angle
Field of View

Superb coverage that minimises blind spots at all times




Various Autonomous
Recording Modes

Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance + Time Lapse Park Mode (HWC Required) | Audio/Voice Recording




2.7" LCD
Display Screen

For quick playback and easy access to camera settings




Advanced Driver
Alert System (ADAS)

Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS) |
Front Vehicle Departure
Warning (FVDW)




Time Lapse
Park Mode

Lengthens parking surveillance
recording time



*HWC Required




Super Night Vision
1.0

Enables for enhanced
low light recording



*HWC Required




Comprehensive Driving
Information with GPS

Accurate vehicle speed reading and location tracking for peace of mind




Safety Camera Alerts

Timely Speed, Red Light Cameras and Mobile Speed Zones notifications




Dual Save
Technology

Securely saves large impact incident recordings on memory card and camera




High Temperature
Protection
(Integrated
Thermal Protection)

Unscathed SD card and video files even in the hottest environment




Fail Safe Recording

Ensures safe storage of recordings in case power gets disconnected after an accident




Memory Card

Format Free 2.0
Supports up to 64GB




PC Viewer

Proprietary THINKWARE
Dash Cam PC Viewer




Warranty

2 Years









HIGH DEFINITION
VIDEO QUALITY

Equipped with CMOS Image Sensors, this lets you record crisp and clear full 1080p HD front and rear cam videos be it daytime or nighttime. Even better, it sports a 140-degree wide angle lens view that minimises blind spots across the board.




DUAL CHANNEL

Equipped with an input for a second camera, this can take your surveillance capabilities to the next tier. Just add in the THINKWARE X50F75RA 1080P HD rear camera to the mix to get peace of mind across the board, as doing so lets you record behind the vehicle. Alternatively, you can add the THINKWARE In-cabin (CABCAMIR) Camera to the fold, especially if you’re in the transportation and logistics business. CABCAMIR is for operators who want in cabin recordings, ideal for day-and-night monitoring of taxis, trucks or fleet vehicles. CABCAMIR comes with Infrared LEDs so nighttime video recording won’t be an issue.


STATE-OF-THE-ART
VIDEO ENHANCEMENTS

Wide Dynamic Range (WDR)

Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images.



Nighttime Picture Quality Correction

Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive.



Automatic Exposure

A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times.




Super Night
Vision
1.0

Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind.

*Enabled during parking mode when installed with optional HWC


VARIOUS AUTONOMOUS
RECORDING MODES

Continuous
Recording Mode

Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.



Event Recording
Mode

Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.



Manual
Recording Mode

Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.



Advanced Parking Surveillance + Time Lapse Mode

Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.



Audio / Voice
Recording

Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.





Time Lapse
Park Mode

Records at 2 frames per second, the Time Lapse Park Mode makes it possible to reduce the video files’ size; hence, this can capture videos from your parked vehicle up to 16 times longer than other dash cams can. This ensures important clips or images will stay safe in its memory for the long haul.

*HWC required, sold separately

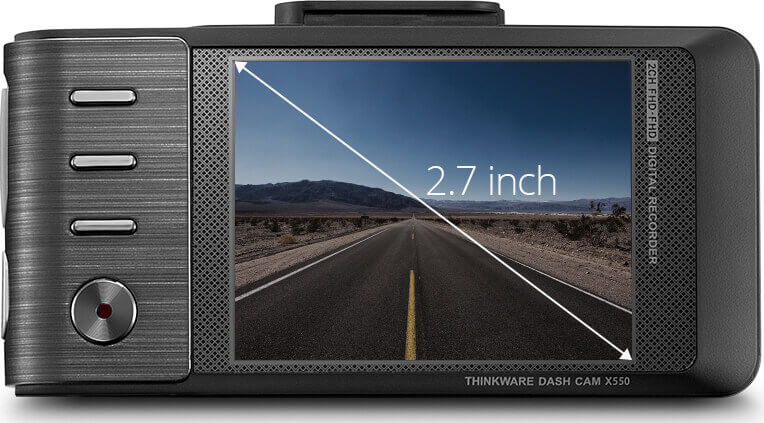

2.7" LCD
DISPLAY SCREEN

You can view or retrieve real-time as well as recorded videos, change the settings and format your memory card on the LCD screen of the Dash Cam. The 2.7-inch clear display allows you to perform these tasks in your car without having to connect to a PC, MAC or smart device. This display comes with optimal specifications for displaying clear and sharp images.




Advanced Driver Alert System
(ADAS)

LDWS

Lane Departure Warning System

Designed for distracted or drowsy drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety.

FCWS

Forward Collision Warning System

Keep a safe distance from the vehicle you’re following with the help of FCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you. This issues a three-level early warning to the driver, depending on the danger of the possible collision.

FVDW

Front Vehicle Departure Warning

When stopped at an intersection or a traffic jam, this dash cam's Front Vehicle Departure Warning (FVDW) intelligent guidance system lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time.






COMPREHENSIVE DRIVING
INFORMATION WITH GPS

With a built-in GPS in place, this can help you keep track of the vehicle’s driving speed and precise location while identifying ideal routes on the map. The GPS also lets you accurately assess the details of the surrounding area and track your holiday routes for faster travels. In case of a road mishap, it supplies accurate readings of vehicle speed, time of the collision and the impact severity.


RED LIGHT



SPEED CAMERA



RED LIGHT & SPEED CAMERA



AVERAGE SPEED



MOBILE ZONE



SAFETY CAMERA
ALERTS

This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the built-in GPS, it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.


DUAL SAVE TECHNOLOGY

In the case of a serious incident, the recording will automatically save to the camera and SD card. Should the SD card get damaged during the incident or the file transfer doesn’t complete, the footage can easily be accessed via the cameras internal memory. This prevents the loss of data in case of a severe collision.


HIGH-TEMPERATURE
PROTECTION SYSTEM


Like all THINKWARE dash cams, it has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.

FAIL-SAFE
RECORDING


In case the power gets disconnected after an accident, the supercapacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.


FORMAT-FREE 2.0 TECHNOLOGY

Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.


PROPRIETARY THINKWARE
DASH CAM PC VIEWER

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.



FULL SPECIFICATION



Number of Channels 2
Resolution Full HD 1080P (front) / Full HD 1080P (rear)
Frames Per Second 30
Camera Angle 140°
Image Sensor / Camera Type Front: Sony EXMOR / 2.13M Pixels / 1/2.8” CMOS
Rear: Sony EXMOR / 2.13M Pixels / 1/2.8” CMOS
Dimensions / Weight 104.3 x 51.4 x 29.3mm / 109g
Video Enhancement Technology

Wide Dynamic Range

Yes

Night Time Picture Correction

Yes

Intelligent Automatic Exposure

Yes

Noise Reduction

Yes

Advanced Video Clear

Yes

Super Night Vision 1.0

Yes (requires HWC)

Super Night Vision 2.0

-
WiFi -
GPS Yes
G-Sensor Yes
Display Screen(Size) 2.7"
Super Capacitor / Battery Super Capacitor
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 2 CH 3.5W / 1 CH 2.5W (mean)
Voltage Detection / Cut Off Yes
Accessory Socket Power Adaptor Included in Single Camera Kit
Hard Wire Kit (HWC) Included in Dual Camera Kit
Mounting Type Adhesive
Dual Save Technology Yes
Thinkware Connect

Live View

-

Geo Fence

-

Vehicle Location

-

Impact Notification

-

Video Storage

-
Camera Alerts

Fixed Speed Camera

Yes

Mobile Speed Camera Zone

Yes

Average Speed Camera Zone

Yes

Red Light Camera

Yes
Advanced Driver Alert System (ADAS)

Lane Departure

Yes

Urban Forward Collision

-

High Speed Forward Collision

Yes

Front Vehicle Departure

Yes
Recording Modes

Continuous Loop

Yes

Impact / Incident

Yes

Manual

Yes

Park Motion Detect

Yes (requires HWC)

Park Impact / Incident

Yes (requires HWC)

Park Time Lapse

Yes (requires HWC)

Park Energy Save

-

Audio / Voice

Yes
Video Format MP4
Video CODEC H264
Audio CODEC PCM
Memory Card Capacity / Class Supports up to 64GB / UHS-1
Warranty 2 Years (on camera hardware, 6 months on micro SD)
Country of Manufacture Korea

Introducing the Thinkware X550 Dash Cam.



SINGLE CAMERA KIT



MICRO SD CARD

(Capacity Model Dependent)



DUAL CAMERA KIT
