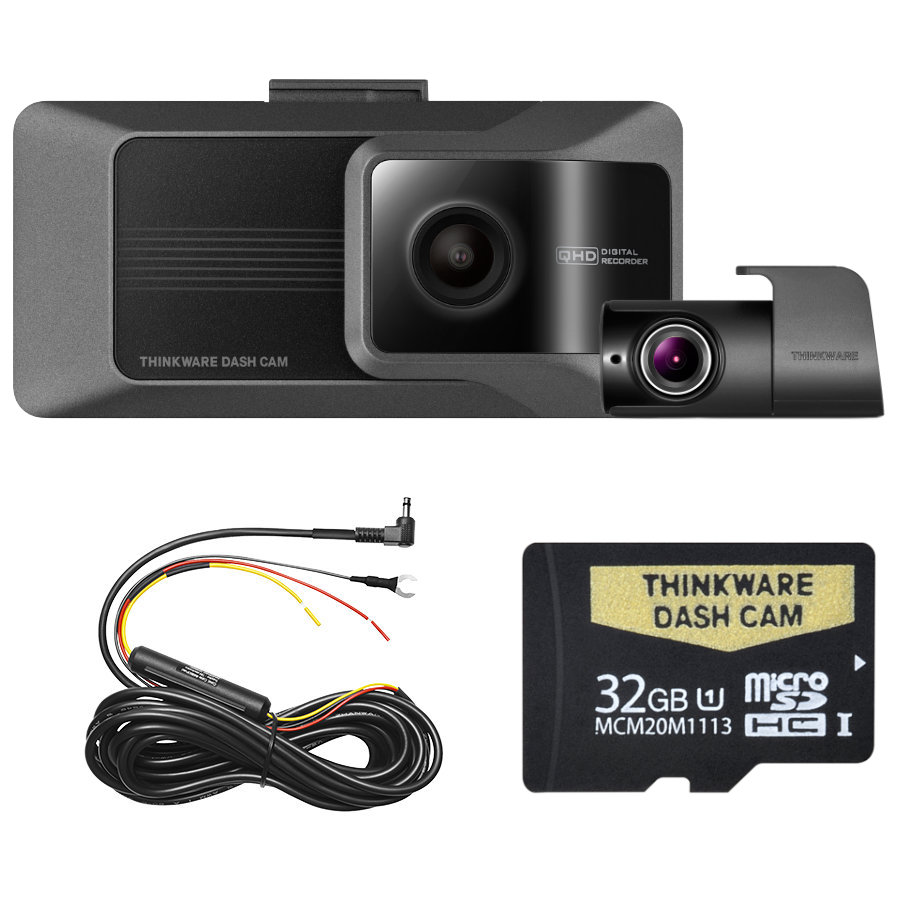

ARCD32 THINKWARE ARC FRONT & REAR DASH CAM PACK - 32GB

Introducing the Thinkare ARC Front and Rear Dash Camera Kit - a reliable and powerful dual-channel dash camera system designed to provide superior protection and surveillance for your vehicle. Featuring True 2K QHD resolution (2560 x 1440) for both the front and rear cameras, and a wide-angle 130-degree field of view, the ARCD32 ensures crystal-clear footage, capturing every detail on the road with unmatched clarity.

With the ARC, you’ll enjoy fully automatic recording as soon as your vehicle starts, and the system intelligently switches to Parking Surveillance Mode when your car is stationary**. Choose from a range of parking modes, including Smart, Energy Saving, Time Lapse, and Motion & Impact Detection, to tailor the protection that suits your needs. For low-light environments, Super Night Vision 2.0 technology enhances footage to ensure clear and accurate recordings, even in challenging lighting conditions.

Stay connected with the ARC's built-in Wi-Fi and Bluetooth connectivity, allowing you to easily pair the device with your smartphone. Manage settings, view live footage, or replay recordings instantly on the integrated 2.7" IPS touchscreen display. The user-friendly interface allows you to access dash cam settings and safety warnings with ease.

Advanced Driver Assistance Systems (ADAS) enhance your driving experience with real-time safety alerts, including Forward Vehicle Departure Warning, while the GPS data logging feature tracks your speed and location, providing crucial information in the event of an incident. The ARC also offers fixed and mobile speed camera alerts, as well as notifications for red light cameras and average speed zones, helping you stay aware of your surroundings.

Built with advanced super-capacitor technology, the ARC is designed for optimal performance, even in high-heat environments. The thermal protection system ensures that your dash camera operates efficiently, no matter the conditions, with an operating temperature range of -10°C to +60°C.

Supplied with a 32GB Micro SD card, 12v accessory adapter and a hard wire kit, the ARC is ready for installation. This dash camera kit is compatible with both 12V and 24V vehicles, and it includes a 6m rear camera cable for easy installation in a wide range of vehicle types.

For electric vehicles and modern cars equipped with variable voltage alternators, the ARC can be enhanced with the Thinkware IVOLTMN or IVOLTMAX External Dash Cam Battery (sold separately), ensuring consistent performance in all vehicle types.

Whether you're driving or parked, the ARCD32 Dash Camera Kit offers full coverage and peace of mind, capturing every detail so you can focus on the road ahead.


Important Information:

  • (**) Hard wire kit installation required for parking mode features, HWC included in kit.
  • For Electric Vehicles (EV) and modern vehicles fitted with Variable Voltage (Smart) Alternators we recommend installing the dash cam with the Thinkware IVOLTMN or IVOLTMAX External Dash Cam Battery (sold separately).
  • The Thinkware ARC Traffic Signal Alert (Green light notification) will not work in Australia or New Zealand.

Smartphone Apps:

Download the THINKWARE DASH CAM LINK APP here:

THINKWARE DASH CAM LINK App Store image

THINKWARE DASH CAM LINK in the Play Store image

Features:
  • Front & rear dual-channel camera system
  • 2K QHD Front & Rear recordings
  • Wide-angle lens (130 degrees diagonally)
  • Fully automatic recording when vehicle starts
  • Automatic switching to parking surveillance mode
  • WiFi & Bluetooth connectivity for smartphone connection
  • High-Definition IPS touchscreen panel allows you to adjust settings, view, and play back recordings instantly from the device
  • GPS data logging to record speed and location information
  • Advanced super-capacitor technology
  • Thermal protection for high heat environments
  • Super Night Vision 2.0 for improved low-light video
  • Mobile app & PC/Mac software available
  • Parking surveillance modes:
    • Smart
    • Energy saving
    • Time lapse
    • Motion & impact
  • Safety camera alerts:
    • Fixed red light & speed cameras
    • Mobile speed camera zones
  • Advanced Driver Assistance Systems (ADAS):
    • Forward vehicle departure warning
  • Korean Made Reliability with 3-Year Warranty for peace of mind
Specs:
  • Channels: 2
  • Resolution:
    • Front and Rear: 2K QHD (2560 x 1440) at 30 fps
  • Camera Angle: 130 Degree (Diagonal)
  • Image Sensor:
    • Front: Omnivision OS04C20
    • Rear: K302P CMOS
  • Dimensions:
    • Front: 104.8 x 49.6x 27.6 mm
    • Rear: 25 x 61 x 27 mm
  • Display:
    • 2.7" IPS LCD (320 x 240)
  • Touchscreen features:
    • Video Playback
    • Live View
    • Road Safety Warnings
    • Dash Camera Settings
    • Privacy Locked (Prevents unauthorised access)
  • Video Enhancement Technology: Super Night Vision 2.0
  • Thinkware Connected: No
  • WIFI: Yes (2.4GHz)
  • Bluetooth: Yes (V5.0, BLE)
  • GPS: Yes
  • G-Sensor: Yes
  • Super Capacitor: Yes
  • High Temperature Protection: Yes
  • Operating / Storage Temperature: -10C to +60C / -20C to +70C
  • Power Input: DC 12/24V
  • Power Consumption: 2CH 5.3W (Peak)
  • Voltage Detection / Cut Off: Yes
  • Accessory Socket Power Adaptor: Included
  • Hard Wire Kit: Included
  • Rear Camera Cable Length: 6m
  • Mounting Type: Adhesive Mount
  • Safety Camera Alerts: Fixed Speed Camera, Mobile Speed Camera Zone, Average Speed Zone, Red Light Camera
  • Advanced Driver Alert System (ADAS): FVDW, Traffic Signal Alert
  • Recording Modes: Continuous, Incident, Manual, Parking (Smart, Motion, Impact, Time Lapse, Energy Saving)
  • Video Format: MP4
  • Video Codec: H.264
  • Audio Codec: AAC
  • Memory Card: 32GB UHS-1 included, supports up to 256GB
  • Important Information:
    • Hard wire kit installation required for parking mode features, HWC included in kit.
    • For Electric Vehicles (EV) and modern vehicles fitted with Variable Voltage (Smart) Alternators we recommend installing the dash cam with the Thinkware IVOLTMN External Dash Cam Battery (sold separately).
  • IMPORTANT: The Thinkware ARC Traffic Signal Alert (Green light notification) will not work in Australia or New Zealand.
