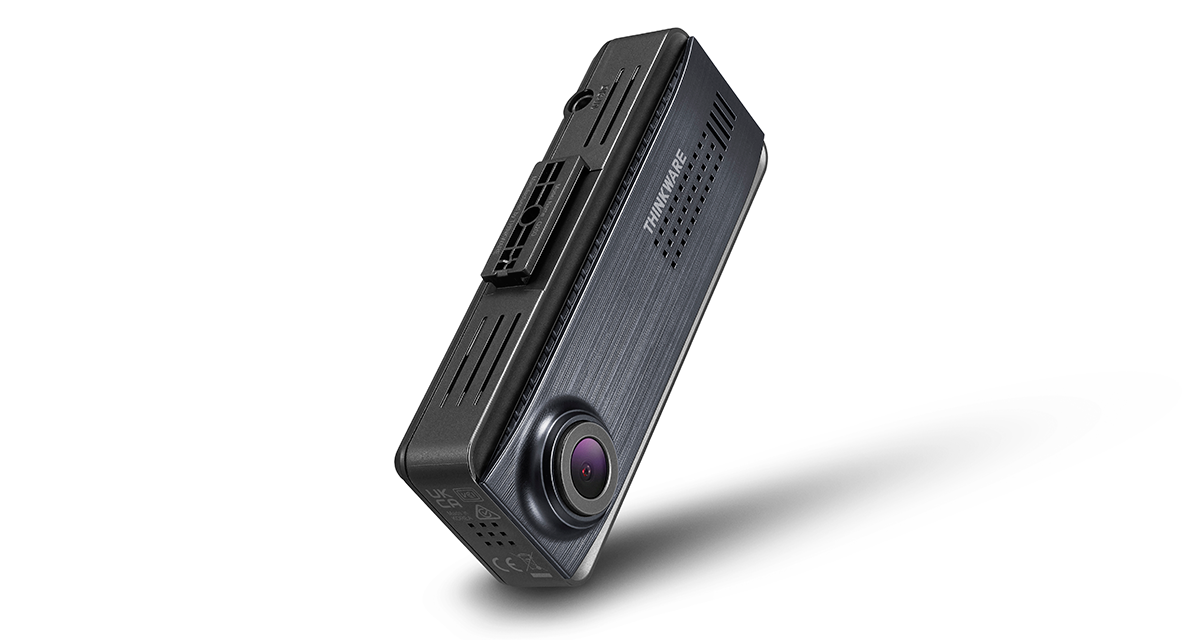

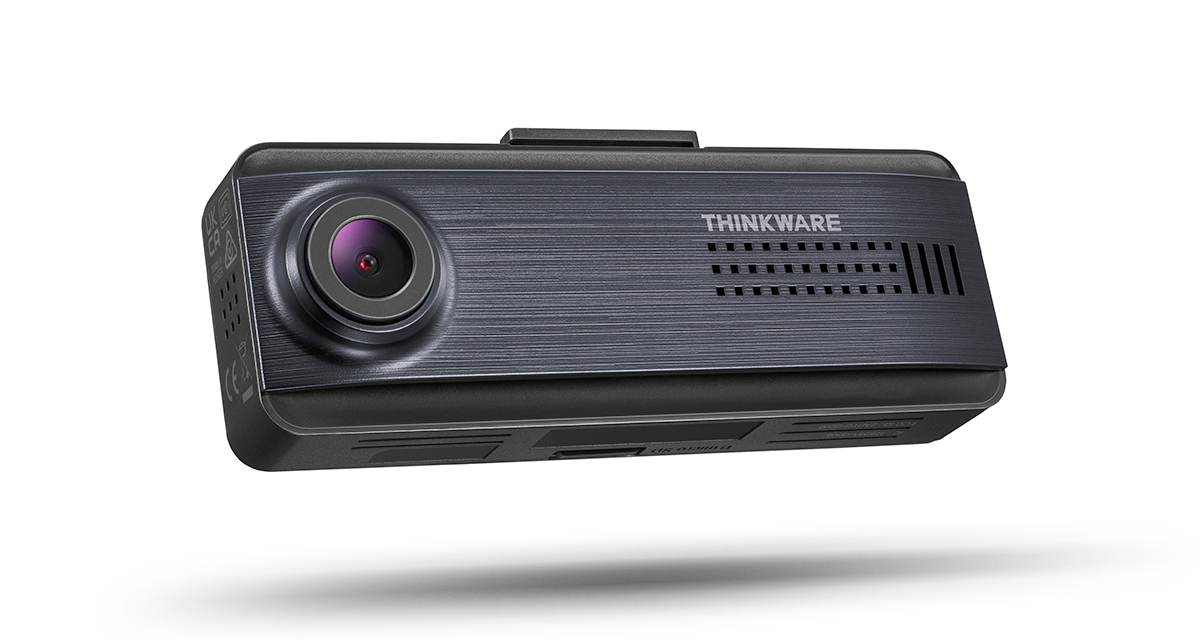

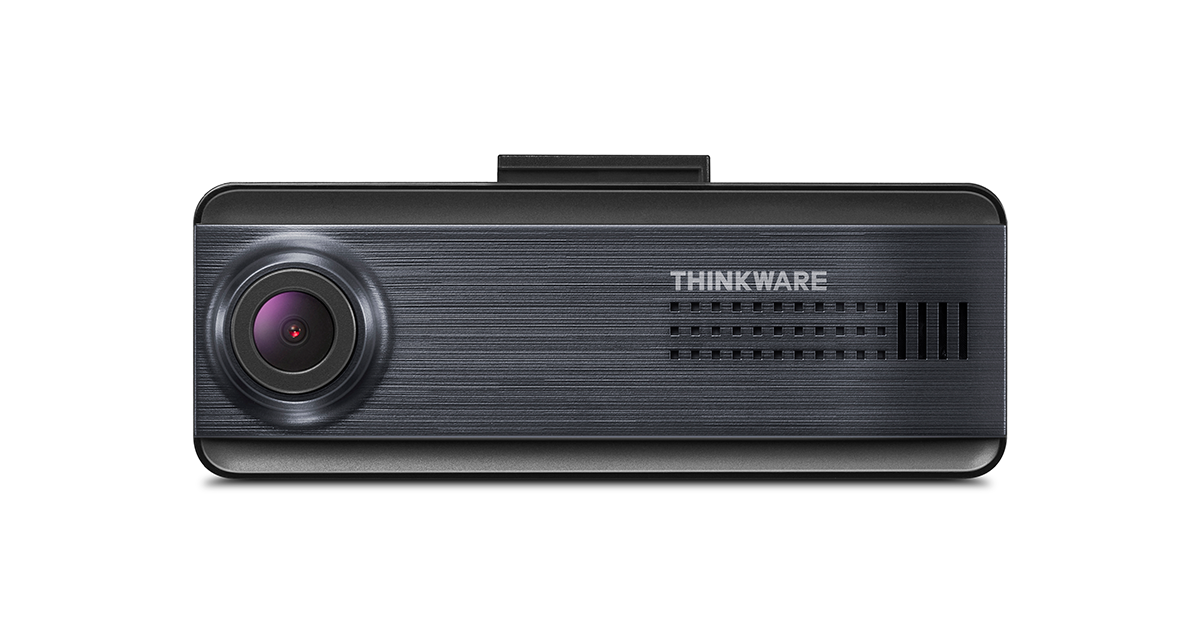

Housed in a sleek compact award winning design, the Thinkware Q200 Dash Cam captures True 2K QHD 1440P resolution front and 1080P HD rear with a wide field of view, providing the ultimate protection for your vehicle. Featuring High Dynamic Range (HDR) and Super Night Vision 2.0, be it day or night, the Q200 produces clear accurate footage to capture undeniable evidence.




Dual Channel
Recording

Front-facing dashboard camera with rear camera input






High Definition
Video Recording

Front 2K QHD | Rear HD
*Rear cam included in 2 channel packs only






Video Enhancement Technology

High Dynamic Range (HDR)
| Dewarping Image Correction




124° Front / 125° Rear Wide Angle View

Superb coverage that minimises blind spots at all times




Various Autonomous
Recording Modes

Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording




Built-in WiFi

Control, manage and update the firmware or click, download or delete recorded videos whenever needed via Thinkware™ Dash Cam Link app




Advanced Driver
Alert System (ADAS)

Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS) |
Urban Forward Collision System
(uFCWS) | Front Vehicle
Departure Warning (FVDW)



*GPSANT Required




Smart Parking
Mode

Adaptive Low-Power mode when a high temperature occurs



*HWC Required


Energy Save
Park Mode

Parking surveillance video recordings of up to 3 times longer



*HWC Required




Time Lapse
Park Mode

Lengthens parking surveillance
recording time



*HWC Required


Super Night Vision
2.0

Enables for enhanced
low light recording



*HWC Required


Comprehensive Driving
Information with GPS

Accurate vehicle speed reading and location tracking for peace of mind



*GPSANT Required


Safety Camera Alerts

Timely Speed, Red Light Cameras and Mobile Speed Zones notifications



*GPSANT Required


Multiplexer Compatible

Get total coverage by transforming your Thinkware Dash Cam into a multi-channel surveillance system with the Multiplexer Box accessory

*Optional




Fail Safe Recording

Ensures safe storage of recordings in case power gets disconnected after an accident

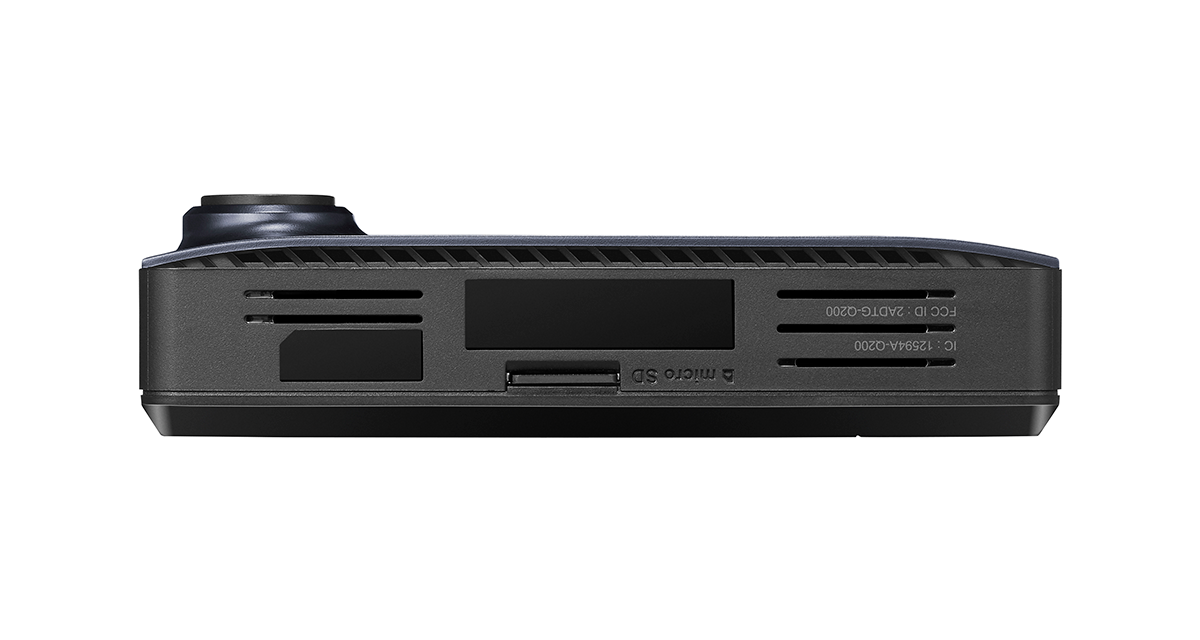

Memory Card

Format Free 2.0
Supports up to 256GB




Built-in Bluetooth

Allows hassle-free dash cam pairing with your compatible Android or iOS device via the Thinkware™ Dash Cam Link App




Warranty

3 Years







HIGH DEFINITION
VIDEO QUALITY

Equipped with Omnivision Image Sensors, this dash cam lets you record crisp and clear 2K QHD front and 1080p HD (CMOS) rear cam videos be it daytime or nighttime. Even better, it sports a 125-degree wide ange lens view that minimises blind spots across the board.




DUAL
CHANNEL

The Q200 has a second camera input, allowing the addition of an optional camera.
The second camera options include:



1080P FHD Internal Rear Window Camera
1080P FHD Internal Infrared Cabin Camera
1080P FHD External Rear Camera
1080P FHD External Side Camera



The Q200 is available as a pack with the Internal Rear Camera included.


View the MODELS tab for optional camera models.

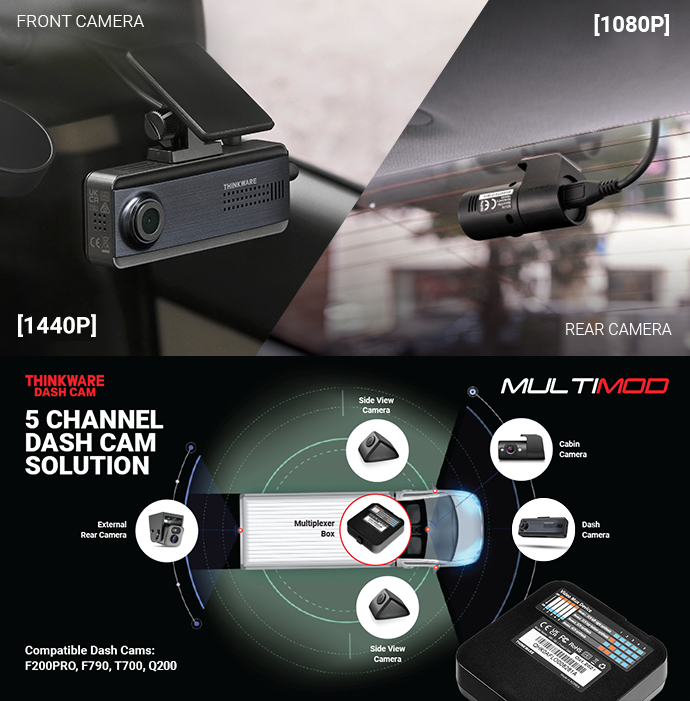

5 CHANNEL
DASH CAM SOLUTION

The optional Thinkware MULTMOD Multiplexer Module transforms Thinkware Q200 Dash Cam into a five channel dash cam solution. The module connects to the rear input of the dash cam and allows up to four additional cameras to be connected. The recorded footage from the additional cameras merge together to provide a single split screen 1080P FHD video file.


For more information on the Multiplexer Module CLICK HERE


STATE-OF-THE-ART
VIDEO ENHANCEMENTS


Wide Dynamic Range (WDR)

Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images.

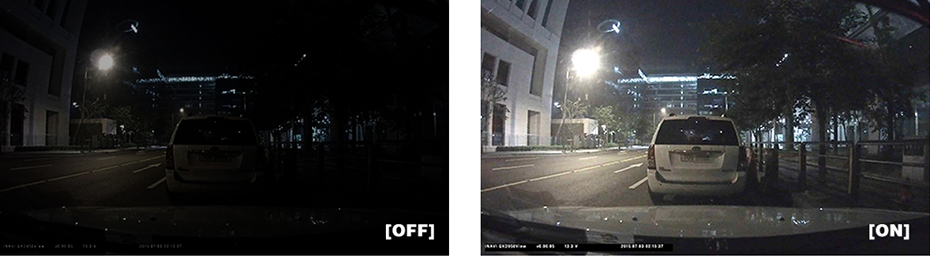

Nighttime Picture Quality Correction

Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive.




Automatic Exposure

A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times.






SUPER NIGHT VISION
2.0

Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind.

*Enabled during parking mode when installed with optional HWC




VARIOUS AUTONOMOUS
RECORDING MODES


Continuous
Recording Mode

Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.


Event Recording
Mode

Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.


Manual
Recording Mode

Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.


Advanced Parking
Surveillance Mode

Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.


Audio / Voice
Recording

Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.


Parking Surveillance
MODE

With hardwiring installation, enjoy parking protection against potential mishaps and hit-and-runs by capturing footage when an impact or motion is detected (hardwiring cable or OBD-II cable required).
You can tailor the Q200’s Parking Surveillance mode to the coverage that best fits your surveillance needs by choosing from Impact/Motion Detection, Time Lapse, or Energy Saving parking modes.





app store



Smart Parking Mode

Smart Parking Mode feature prevents heat-related damage by automatically switching the Q200 to a low-power mode if the temperature inside the vehicle gets too high during Parking Surveillance. In this state, the dash cam records incidents triggered by impacts only until its operating temperatureissafe again to resume Motion Detection or Time Lapse Parking mode.

app store



Impact and Motion Detection

With Impact and Motion Detection turned on, any potential vandalism attempts and hit-and-run drivers while the car is parked will be caught in the act. In Parking mode, Impact detection captures any impact to the vehicle while Motion Detection captures any movement around the vehicle.

app store



Time Lapse

Time Lapse in Parking mode records footage at 2fps, enabling the dash cam to continuously record long periods of parking surveillance without increasing power consumption.

app store



Energy Saving 1.0

Energy Saving 1.0 in Parking Surveillance mode records footage triggered by impacts only, allowing the Q200 to reduce its power consumption and remain in Parking mode for a longer duration.

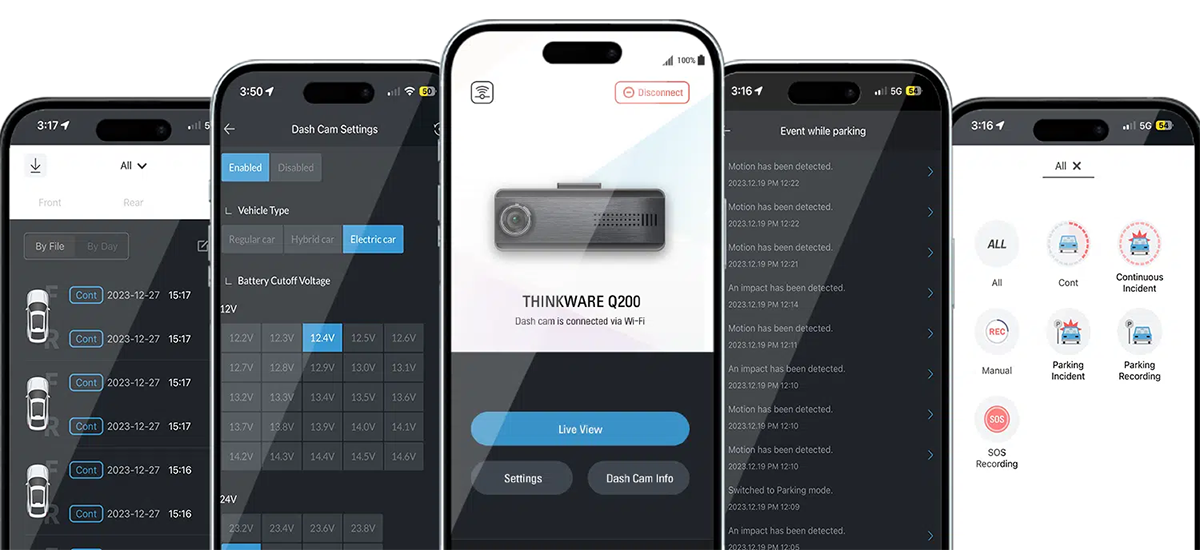

Easy Wi-Fi Device Pairing
WITH Thinkware Dash Cam Link App & Bluetooth

Built-in Bluetooth allows hassle-free dash cam pairing with your compatible Android or iOS device via the Thinkware Dash Cam Link App.
Once paired, replay your latest driving videos and manage your dash cam’s settings with the Thinkware Dash Cam Link App.










Convenient control, efficient video download and real-time view all through one app. Get it now.




THINKWARE DASHCAM LINK
Q1000, Q200, F790, F800, F200 PRO, F200, FA200, ARCD32
app store
google play




Advanced Driver Alert System
(ADAS)*

*GPSANT required, sold separately


LDWS

Lane Departure Warning System

Designed for distracted or drowsey drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety.

FCWS / uFCWS

High Speed / Urban Forward Collision Warning System

Keep a safe distance from the vehicle you’re following with the help of FCWS / uFCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you at a speed of over 30 kilometres per hour (km/h) (in expressways) and under 30 km/h in a busy, congested city. This dash cam issues a three-level early warning to the driver, depending on the danger of the possible collision.

FVDW

Front Vehicle Departure Warning

When stopped at an intersection or a traffic jam, this dash cam's Front Vehicle Departure Warning (FVDW) intelligent guidance system lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time.


COMPREHENSIVE DRIVING INFORMATION
WITH GPS

By adding in a genuine THINKWARE Dash Cam GPS Antenna (GPSANT) to the mix, this can keep track of the vehicle’s driving speed and precise location, while identifying ideal routes on the map. The GPS also lets you accurately assess the details of the surrounding area and track your holiday routes for faster travels. In case of a road mishap, it supplies accurate readings of vehicle speed, time of the collision and the impact severity.

*GPSANT required, sold separately


RED LIGHT



SPEED CAMERA



RED LIGHT & SPEED CAMERA



AVERAGE SPEED



MOBILE ZONE



SAFETY CAMERA
ALERTS

This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the optional GPS antenna (GPSANT), it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.

*GPSANT required, sold separately


HIGH-TEMPERATURE
PROTECTION SYSTEM


Like all THINKWARE dash cams, this one has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating. This allows for the dash cam to thrive even in the harshest Australian weather conditions.

BUILT-IN
SUPERCAPACITOR


In the event that the power gets disconnected after an accident, the fail-safe recording uses the Super Capacitor for backup power to ensure safe storage of any recording in progress – so you can be assured that your valuable data will be securely stored under any circumstances.




PROPRIETARY THINKWARE DASH CAM
PC VIEWER

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.



FULL SPECIFICATION

Number of Channels 2
Resolution 2K QHD (front) / HD 1080P (rear)
Frames Per Second 30
Camera Angle 124° (front)
Image Sensor / Camera Type 4 Megapixel Omnivision OS04C20

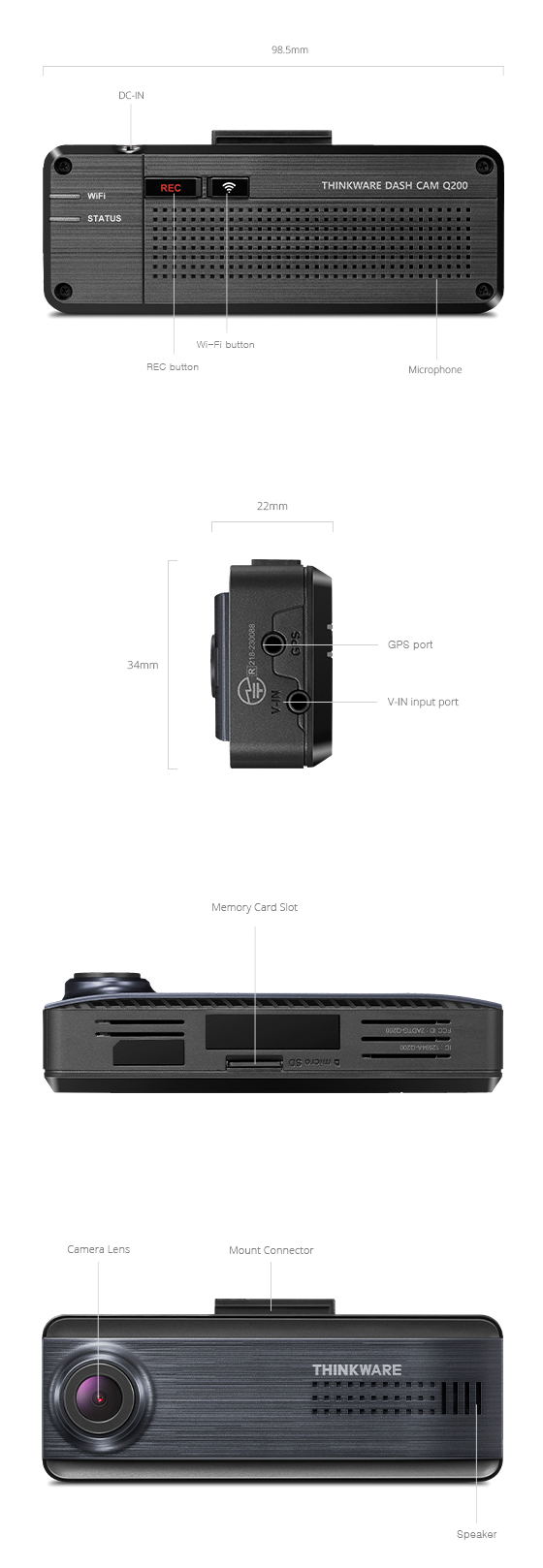

Dimensions / Weight 98.5 x 34 x 22MM (front)
25 x 61 x 32.8MM (rear)
Video Enhancement Technology

High Dynamic Range (HDR)

Yes

Night Time Picture Correction

Yes

Intelligent Automatic Exposure

Yes

Noise Reduction

Yes

Advanced Video Clear

Yes

Super Night Vision 1.0

-

Super Night Vision 2.0

Yes
WiFi Yes (2.4GHz)
Bluetooth Yes (V5.0, BLE)
GPS Yes (requires GPSANT)
G-Sensor Yes
Display Screen(Size) -
Super Capacitor / Battery Super Capacitor
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 2CH 3.8W / 1CH 3.3W (mean)
Voltage Detection / Cut Off Yes
Accessory Socket Power Adaptor 12VCC (optional)
Hard Wire Kit (HWC) Included in Dual Camera Kit
Rear Camera Cable Length 7.5M
Mounting Type Adhesive
Camera Alerts

Fixed Speed Camera

Yes (requires GPSANT)

Mobile Speed Camera Zone

Yes (requires GPSANT)

Average Speed Camera Zone

Yes (requires GPSANT)

Red Light Camera

Yes (requires GPSANT)
Advanced Driver Alert System (ADAS)

Lane Departure

Yes (requires GPSANT)

Urban Forward Collision

Yes (requires GPSANT)

High Speed Forward Collision

Yes (requires GPSANT)

Front Vehicle Departure

Yes (requires GPSANT)
Recording Modes

Continuous Loop

Yes

Impact / Incident

Yes

Manual

Yes

Park Motion Detect

Yes (requires HWC)

Park Impact / Incident

Yes (requires HWC)

Park Time Lapse

Yes (requires HWC)

Park Energy Save

Yes (requires HWC)

Audio / Voice

Yes
Video Format MP4
Video CODEC H264
Audio CODEC AAC
Memory Card Capacity / Class Supports up to 256GB / UH-1
Warranty 3 Years (on camera hardware, 12 months on micro SD)
Country of Manufacture Korea



DUAL CAMERA KIT

QUICK START GUIDE


MICRO SD CARD



(Capacity Model Dependent)


ADHESIVE CABLE CLIPS
