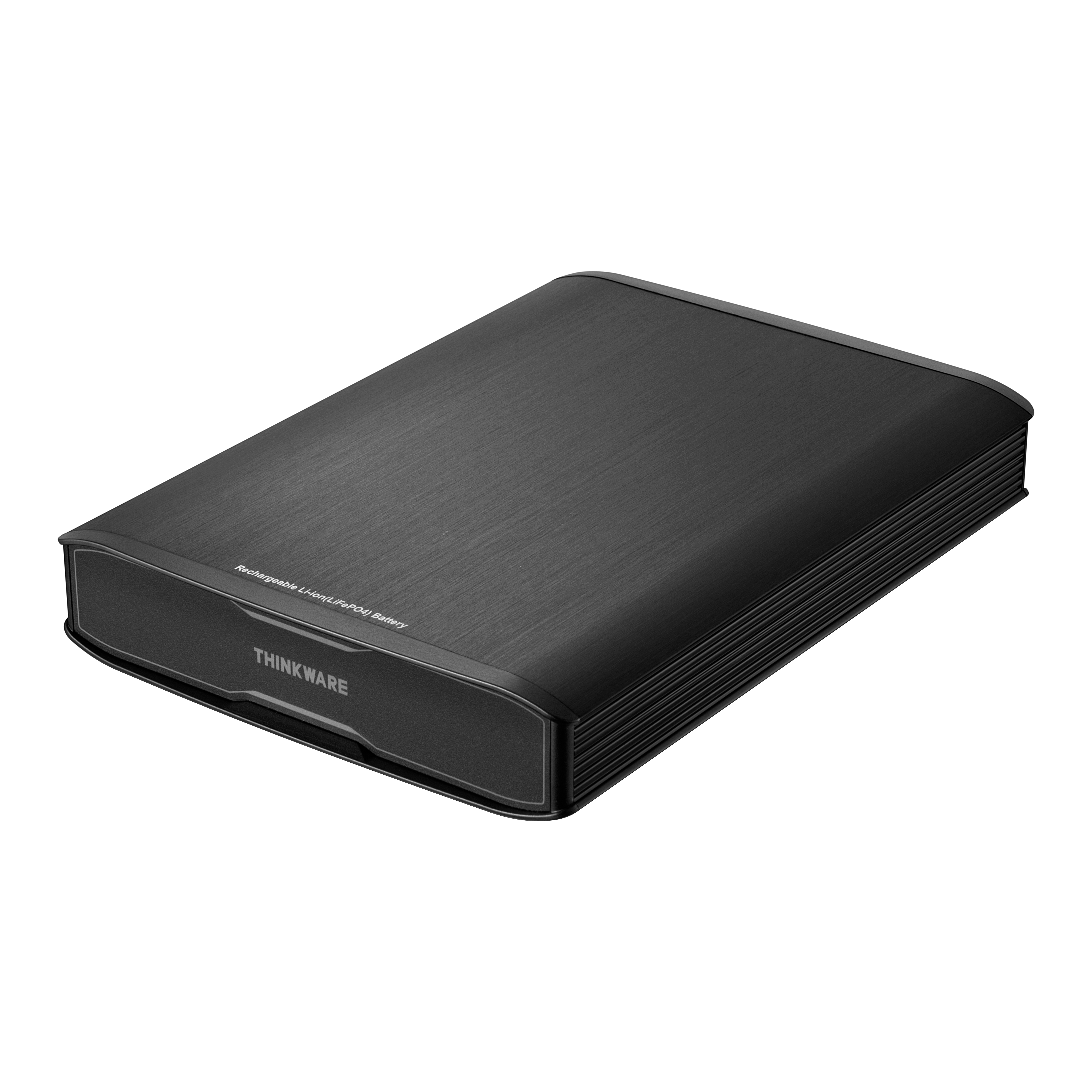

IVOLTMAX THINKWARE EXTERNAL BATTERY

Packing more oomph than its smaller sibling iVolt Mini, the new iVolt Max External Battery delivers high performance, more power and increased durability to make your Thinkware Dash Cam’s parking mode last even longer. The iVolt Max is encased in an elegant aluminium body that lends it a modern and sophisticated look, and comes with a user-friendly Bluetooth companion app to keep you informed of its state of charge.

High Capacity and a Long Run Time:
With a capacity of 7500mAh / 96Wh, iVolt Max gives your Thinkware 2-channel dash cam 66% more power than the iVolt mini and a long run time of up to 27 hours* while in Motion Detection Parking Mode. In Energy Saving Mode, the battery can power the dash cam for up to 960 hours (40 days)* so that your dash cam doesn’t miss an incident while parked for long durations. *Based on 2-channel dash cam in Motion & Detection Mode. Charging and run time may vary depending on the dash cam model and the environment.

iVolt Battery App:
Accompanying the iVolt Max is its app, which allows you to check the battery’s status, performance, and temperature. The battery features built-in Bluetooth for easy pairing with your smartphone.

Fast Charging:
Despite having a higher capacity than iVolt mini, iVolt Max can be fully charged in as little as 55 mins*, thanks to the Fast Charging feature. The battery can also be fully charged in 100 minutes* in standard charging mode without affecting the lifespan of the battery. The external battery recharges while you are driving and powers your dash cam when the car’s ignition is off.

Smart Charging:
Smart Charging helps protect the battery against unexpected situations like overcharge, over-discharge, sudden input voltage change, and low voltage thanks to the PCM (Protection Circuit Module). It also provides Heat Protection while charging. If the temperature of the dash cam rises to more than 80°C, the battery will automatically cut off its power and the power to the dash cam to protect it.

Safe LiFePo4 Technology:
The battery is made from Lithium Iron Phosphate (LiFePo4) material, which is safer and more stable than lithium-ion, and has a lifespan that is 3 times longer than that of lithium-ion and nickel-based batteries.

Compatible with Electric Vehicles:
iVolt Max External Battery can be safely hardwired into both electric and gasoline cars. However, it is not possible to hardwire iVolt Max in some electric vehicles like Tesla's because they do not have a traditional fuse box.

iVolt Max External Battery Installation:
The iVolt Max External Battery is a hardwired product. It is connected to the Fuse Box directly, to charge while driving.

Compatible with all THINKWARE Dash Cam Models:
The External Battery requires Hardwiring Cable (sold separately) installation. Hardwiring Cable is included in some dash cam bundles.

Video:
Feature Video

Important Information:

  • The iVolt Max is also referred to iVolt Xtra and BAB-95 in international markets.
Features:
  • High Capacity and a Long Run Time with a capacity of 7500mAh / 96Wh
  • iVolt Battery App, which allows you to check the battery’s status, performance and temperature
  • Fast Charging, can be fully charged in as little as 55 mins
  • Smart Charging helps protect the battery against unexpected situations like overcharge, over-discharge, sudden input voltage change and low voltage thanks to the PCM (Protection Circuit Module)
  • Safe LiFePo4 Technology, which is safer and more stable than lithium-ion and has a lifespan that is 3 times longer than that of lithium-ion and nickel-based batteries
  • Compatible with most Electric Vehicles
Specs:
  • Input Voltage / Current:
    • Standard Charging: 12.0 V -15.5 V / Max 6.5 A
    • Fast Charging: 12.0 V -15.5 V / Max 13.0 A
  • Output Voltage / Current:
    • Dash Cam: 11.0 V – 14.2 V / Max. 2.0 A
    • USB: 5.0 V / Max 2.0 A
  • Charging Voltage / Current:
    • Standard: 14.2 V / Max 4.5 A
    • Fast: 14.2 V / Max 8.5 A
  • Charging Time (Approx.):
    • Standard: 100 minutes
    • Fast: 55 minutes
  • Usage Time (Approx.):
    • 2ch Parking Mode: 27 hours
    • 2ch Energy Saving Mode: 960 hours
  • Battery: LiFePo4 (Lithium iron phosphate)
  • Battery Capacity: 12.8 V 7500 mAh
  • Dimensions (WxDxH): 155.0 x 215.0 x 35.0 mm
  • Weight: 1.589 kg
  • Operating Temperature Charging: 0C - 45C
  • Discharging: -10C - 60C (Cell skin temperature cannot exceed 80C)
  • Storage Temperature: -20C - 60C
