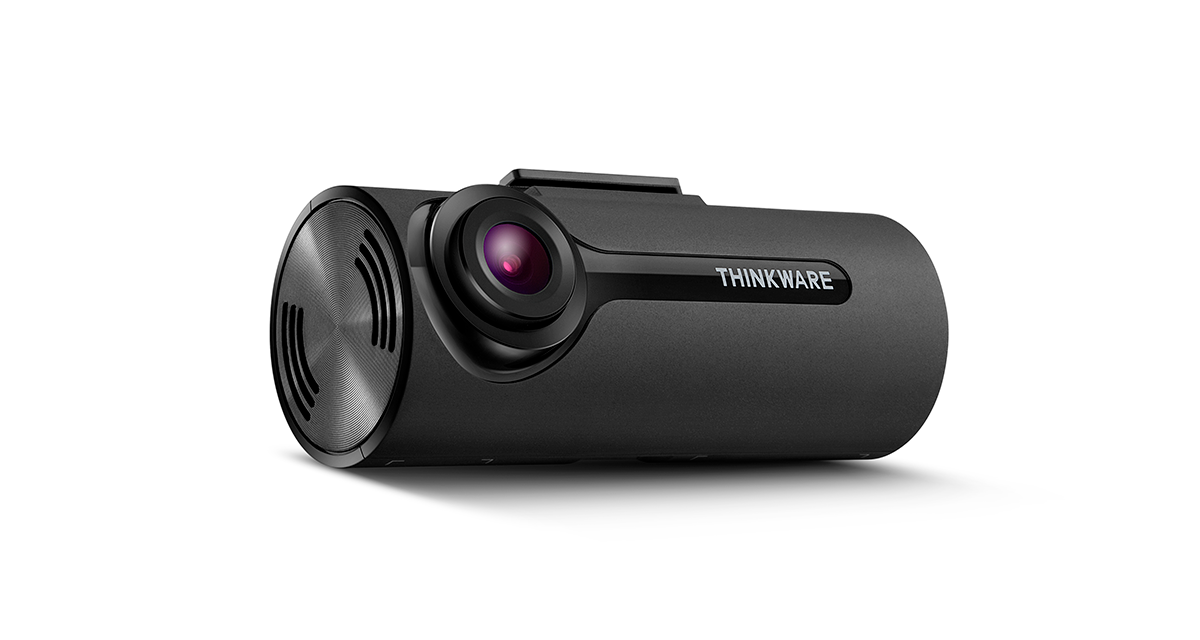

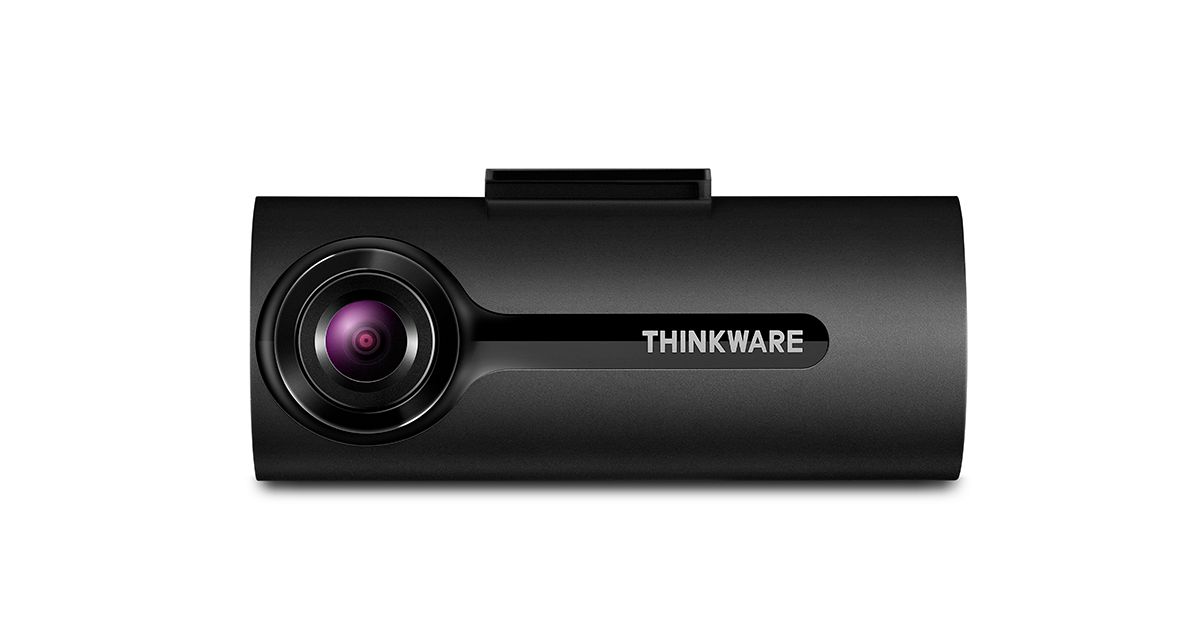

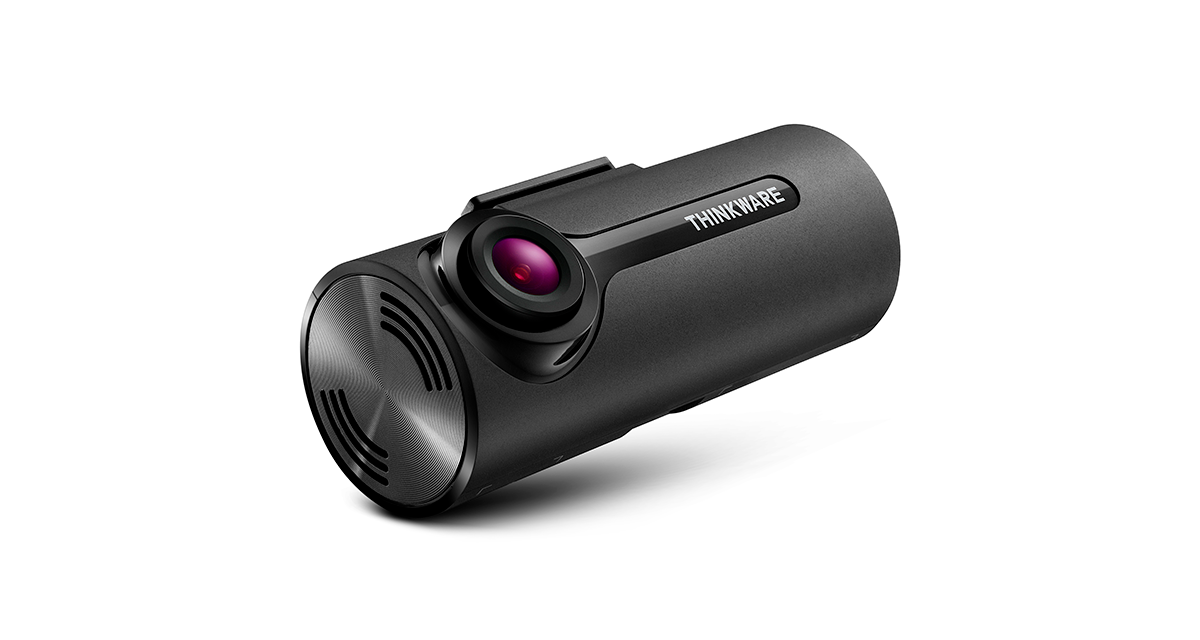

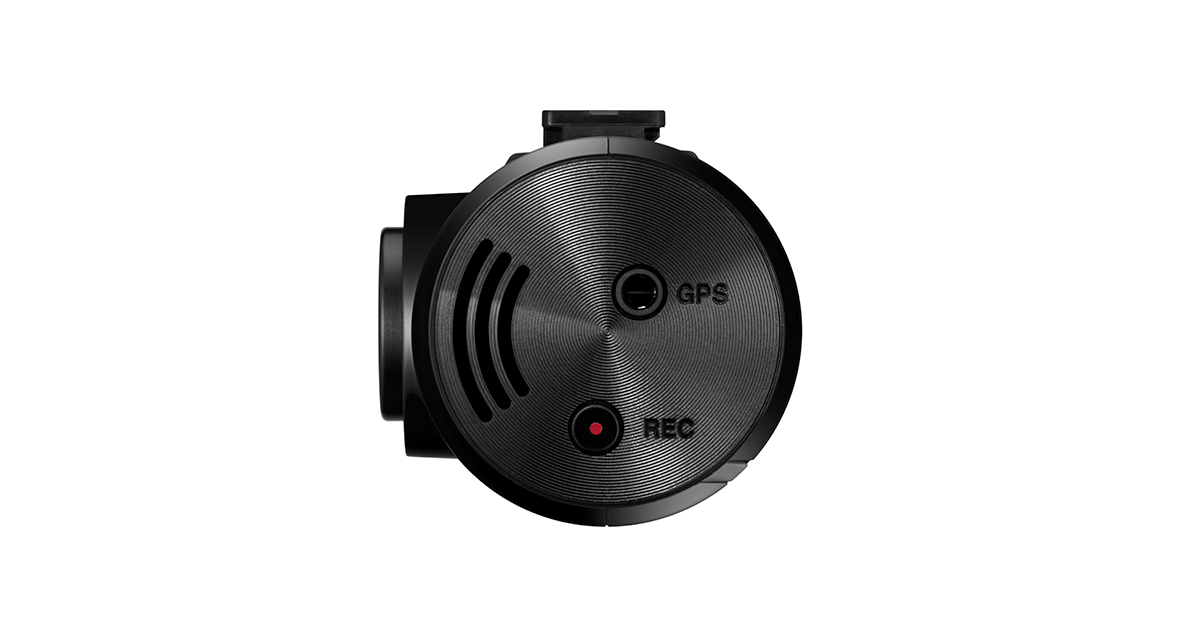

F70

F70

The F70 gives you crisp full HD wide 140-degree angle view 1080P videos and extended view of the road ahead. Equipped with wide dynamic range, night time picture correction and automatic exposure, F70 covers a greater span between bright and the dark areas while driving. For protection when the vehicle is stopped, it comes with Front Vehicle Departure Warning (FVDW). When waiting at an intersection or in traffic, FVDW alerts if the vehicle in front of you has already moved forward, preventing a delayed response and averting accidents.




Single Channel Recording

Energy-efficient front-facing dashboard camera




High Definition
Video Recording

Clear and crisp video files be it daytime or nighttime




Video Enhancement Technology

High Dynamic Range (HDR)
| Dewarping Image Correction




140° Wide Angle
Field of View

Superb coverage that minimises blind spots at all times




Various Autonomous
Recording Modes

Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording




Advanced Driver
Alert System (ADAS)

Front Vehicle Departure
Warning System (FVDW)




Energy Save
Parking Mode

Parking surveillance video
recordings of up to 3 times longer



*HWC Required


Comprehensive Driving
Information with GPS

Accurate vehicle speed reading and location tracking for peace of mind



*GPSANT Required


Safety Camera Alerts

Timely Speed, Red Light Cameras and Mobile Speed Zones notifications



*GPSANT Required


High Temperature
Protection
(Integrated
Thermal Protection)

Unscathed SD card and video files even in the hottest environment




Fail Safe Recording

Ensures safe storage of recordings in case power gets disconnected after an accident




Memory Card

Format Free 2.0
Supports up to 64GB




PC Viewer

Proprietary THINKWARE
Dash Cam PC Viewer




Warranty

2 Years



HIGH DEFINITION
VIDEO QUALITY

Equipped with CMOS Image Sensor, this lets you record crisp and clear full 1080p HD videos be it daytime or nighttime. Even better, it sports a 140-degree wide angle lens view that minimises blind spots across the board.


STATE-OF-THE-ART
VIDEO ENHANCEMENTS


Wide Dynamic Range (WDR)

Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images.




Nighttime Picture Quality Correction

Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive.




Automatic Exposure

A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times.




VARIOUS AUTONOMOUS
RECORDING MODES


Continuous
Recording Mode

Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.


Event Recording
Mode

Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.


Manual
Recording Mode

Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.


Advanced Parking
Surveillance Mode

Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.


Audio / Voice
Recording

Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.

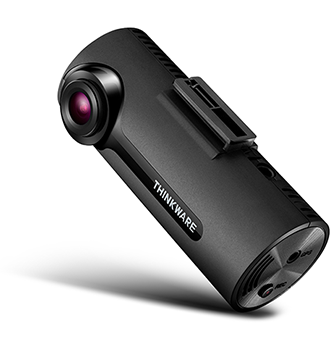

ENERGY SAVE
PARKING MODE

This feature significantly trims down your power consumption up to 1/3 less, while giving you as much as 3x longer recording capability. Serves you well when you're on a vacation or you need to leave the vehicle unattended for quite some time, the Energy Save Parking Mode instantly puts the dash cam to sleep after capturing 20-second footage of an impact or motion detected by the G-Sensor.

*HWC required


Advanced Driver Alert System
(ADAS)

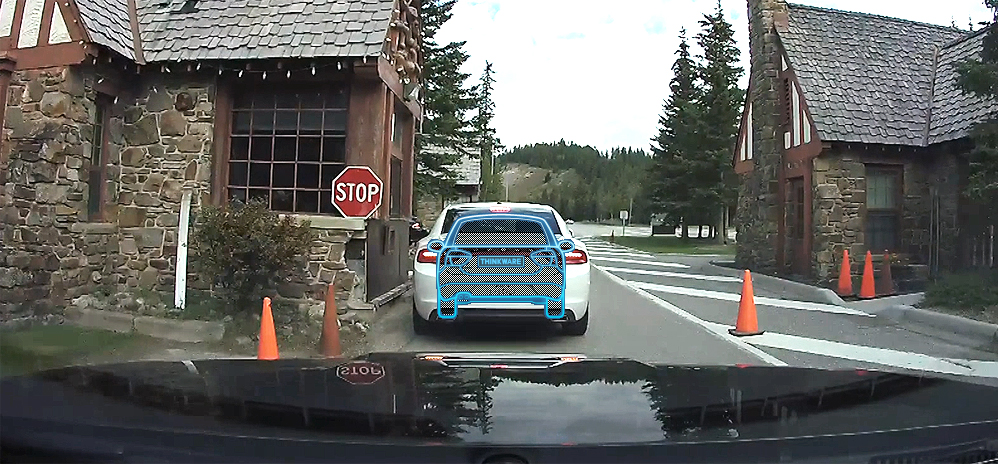

Forward Vehicle Departure Warning (FVDW)



When stopped at an intersection or a traffic jam, the FVDW lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time.


COMPREHENSIVE DRIVING INFORMATION
WITH GPS

By adding in a genuine THINKWARE Dash Cam GPS Antenna (GPSANT) to the mix, this can help you keep track of the vehicle’s driving speed and precise location while identifying ideal routes on the map. The GPS also lets you accurately assess the details of the surrounding area and track your holiday routes for faster travels. In case of a road mishap, it supplies accurate readings of vehicle speed, time of the collision and the impact severity.



*GPSANT required, sold separately


RED LIGHT



SPEED CAMERA



RED LIGHT & SPEED CAMERA



AVERAGE SPEED



MOBILE ZONE



SAFETY CAMERA
ALERTS

This comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the GPSANT add-on, it lets a driver know about a designated average speed zones in a specific area, as it notifies whenever a red light or speed camera is nearby, as well.



*GPSANT required, sold separately


HIGH-TEMPERATURE
PROTECTION SYSTEM


Like all THINKWARE dash cams, it has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.

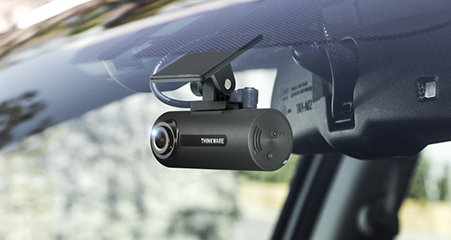

FAIL-SAFE
RECORDING


In case the power gets disconnected after an accident, the super capacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.


FORMAT-FREE 2.0
TECHNOLOGY

Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.


PROPRIETARY THINKWARE DASH CAM
PC VIEWER

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.




FULL SPECIFICATION

Number of Channels 1
Resolution 1080P (front)
Frames Per Second 30
Camera Angle 140°
Image Sensor / Camera Type Sony EXMOR / 2.1M Pixels / On Semiconductor CMOS
Dimensions / Weight 78 x 34.6 x 31.5mm / 42.4g
Video Enhancement Technology

Wide Dynamic Range

Yes

Night Time Picture Correction

Yes

Intelligent Automatic Exposure

Yes

Noise Reduction

Yes

Advanced Video Clear

Yes

Super Night Vision 1.0

-

Super Night Vision 2.0

-
WiFi -
GPS Yes (requires GPSANT)
G-Sensor Yes
Display Screen(Size) -
Super Capacitor / Battery Super Capacitor
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 1 CH 2W (mean)
Voltage Detection / Cut Off Yes
Accessory Socket Power Adaptor Included in Single Camera Kit
Hard Wire Kit (HWC) Optional
Mounting Type Adhesive
Dual Save Technology -
Thinkware Connect

Live View

-

Geo Fence

-

Vehicle Location

-

Impact Notification

-

Video Storage

-
Camera Alerts

Fixed Speed Camera

Yes (requires GPSANT)

Mobile Speed Camera Zone

Yes (requires GPSANT)

Average Speed Camera Zone

Yes (requires GPSANT)

Red Light Camera

Yes (requires GPSANT)
Advanced Driver Alert System (ADAS)

Lane Departure

-

Urban Forward Collision

-

High Speed Forward Collision

-

Front Vehicle Departure

Yes
Recording Modes

Continuous Loop

Yes

Impact / Incident

Yes

Manual

Yes

Park Motion Detect

Yes (requires HWC)

Park Impact / Incident

Yes (requires HWC)

Park Time Lapse

-

Park Energy Save

Yes (requires HWC)

Audio / Voice

Yes
Video Format MOV
Video CODEC H264
Audio CODEC PCM
Memory Card Capacity / Class Supports up to 64GB / UH-1
Warranty 2 Years (on camera hardware, 12 months on micro SD)
Country of Manufacture Korea

Thinkware - F70 unboxing







INCLUSIONS


QUICK START GUIDE




MICRO SD CARD



(Capacity Model Dependent)


ADHESIVE CABLE CLIPS
