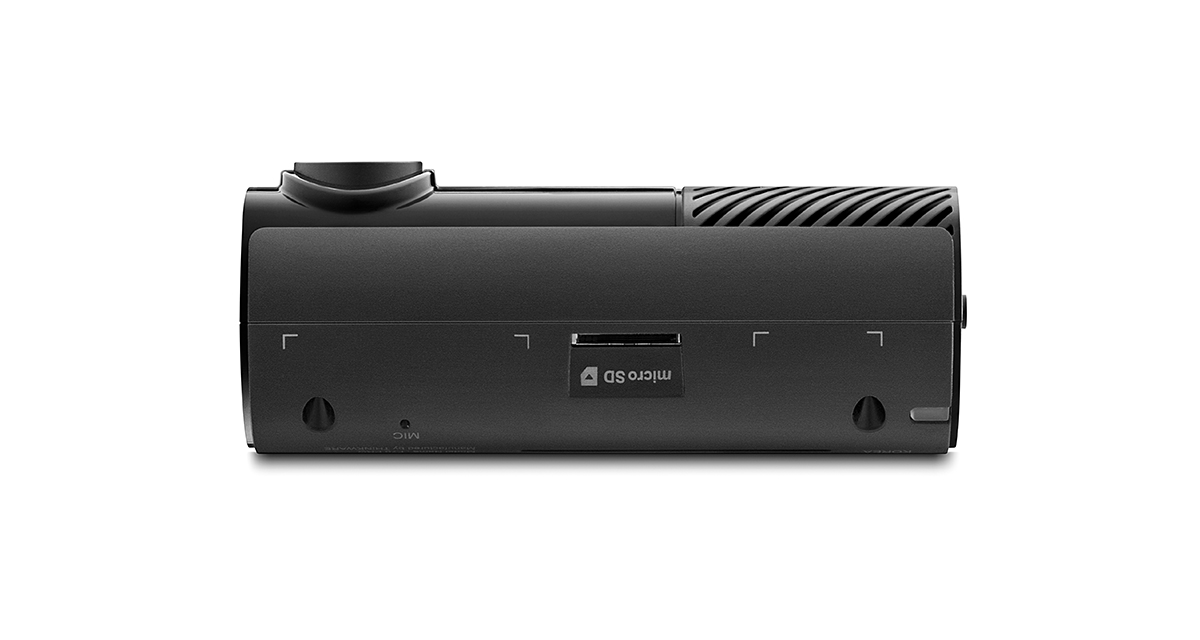

F70PRO
Introducing the Thinkware F70 PRO Dash Cam - Where Innovation Meets Unrivalled Performance! Elevate your driving experience and prioritise safety with the Thinkware F70 PRO Dash Cam, a compact yet powerful device designed to redefine your on-road journeys with its cutting-edge features. At the core of the F70 PRO is its exceptional ability to capture the road in stunning detail. With 1080P Full HD recording at 30fps, this dash cam delivers crystal-clear footage with impeccable contrast and colour balance.
Single Channel Recording
Energy-efficient front-facing dashboard camera
High Definition
Video Recording
Clear and crisp video files be it daytime or nighttime
Video Enhancement Technology
High Dynamic Range (HDR)
| Dewarping Image Correction
140° Wide Angle
Field of View
Superb coverage that minimises blind spots at all times
Various Autonomous
Recording Modes
Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording
Built-in WiFi & Bluetooth
Control, manage and update the firmware or click, download or delete recorded videos whenever needed via Thinkware Dash Cam Link app
Parking Surveillance
Mode
Smart | Motion & Impact Detection | Time Lapse | Energy Saving Mode
*HWC Required
Comprehensive Driving
Information with GPS
Accurate vehicle speed reading and location tracking for peace of mind
*GPSANT Required
Safety Camera Alerts
Timely Speed, Red Light Cameras and Mobile Speed Zones notifications
*GPSANT Required
High Temperature
Protection (Integrated
Thermal Protection)
Unscathed SD card and video files even in the hottest environment
Fail Safe Recording
Ensures safe storage of recordings in case power gets disconnected after an accident
PC Viewer
Proprietary THINKWARE
Dash Cam PC Viewer
Warranty
2 Years
HIGH DEFINITION
VIDEO QUALITY
Equipped with CMOS Image Sensor, this lets you record crisp and clear full 1080p HD videos be it daytime or nighttime. Even better, it sports a 140-degree wide angle lens view that minimises blind spots across the board.
Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images. Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive. A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times. STATE-OF-THE-ART
VIDEO ENHANCEMENTS
Wide Dynamic Range (WDR)
Nighttime Picture Quality Correction
Automatic Exposure
SUPER NIGHT VISION
1.0
Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind. Super Night Vision 1.0 is only enabled during parking mode.
VARIOUS AUTONOMOUS
RECORDING MODES
Continuous
Recording Mode
Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.
Event Recording
Mode
Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.
Manual
Recording Mode
Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.
Advanced Parking
Surveillance Mode
Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.
Audio / Voice
Recording
Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.

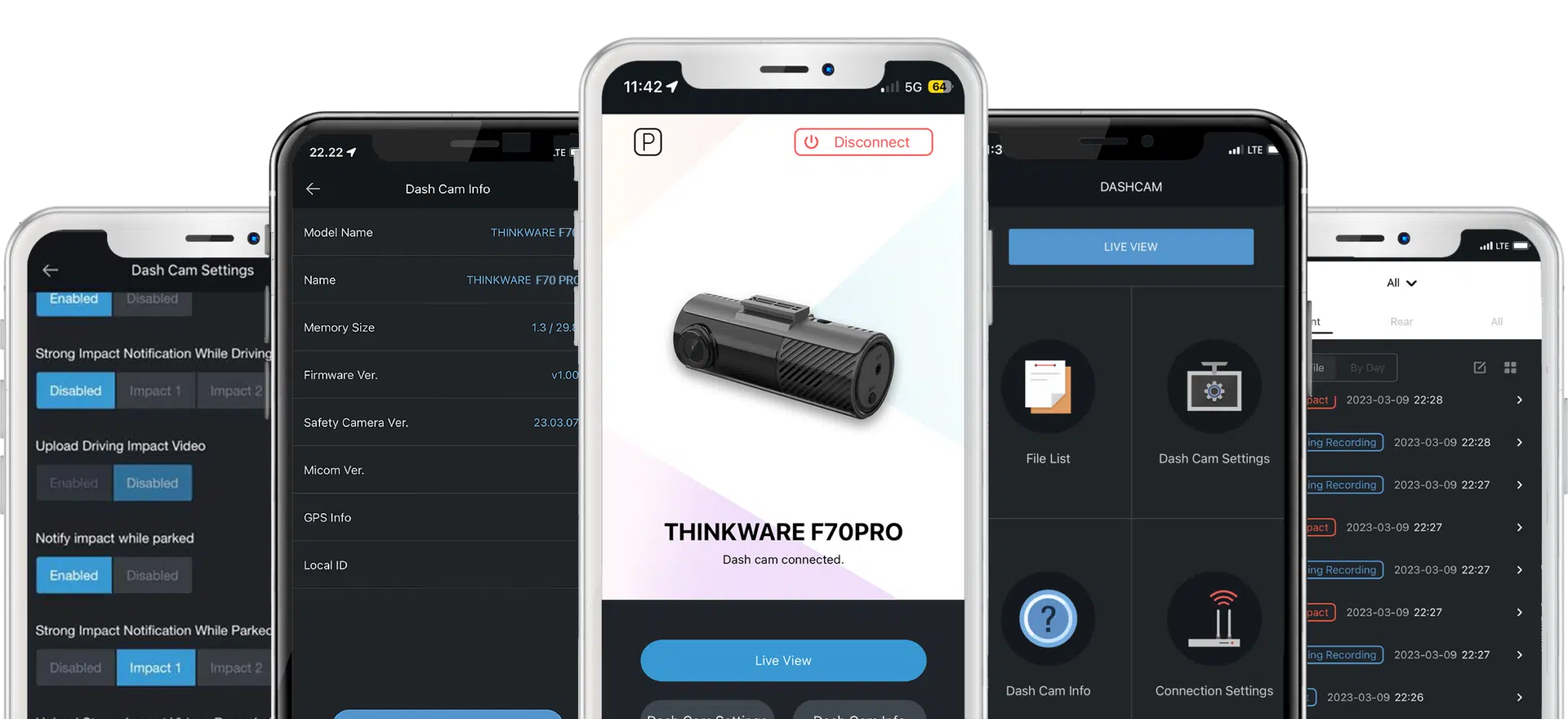

Easy Wi-Fi Device Pairing
WITH Thinkware Dash Cam Link App & Bluetooth
Built-in Bluetooth allows hassle-free dash cam pairing with your compatible Android or iOS device via the Thinkware Dash Cam Link App.
Once paired, replay your latest driving videos and manage your dash cam’s settings with the Thinkware Dash Cam Link App.
U3000, Q1000, F790, F800, F200 PRO, F200, F70PRO and FA200
Parking Surveillance
MODE
With hardwiring installation, enjoy parking protection against potential mishaps and hit-and-runs by capturing footage when an impact or motion is detected (hardwiring cable or OBD-II cable required).You can tailor the F70PRO’s Parking Surveillance mode to the coverage that best fits your surveillance needs by choosing from Impact/Motion Detection, Time Lapse, or Energy Saving parking modes.
Impact and Motion Detection
With Impact and Motion Detection turned on, any potential vandalism attempts and hit-and-run drivers while the car is parked will be caught in the act. In Parking mode, Impact detection captures any impact to the vehicle while Motion Detection captures any movement around the vehicle.
Time Lapse
Time Lapse in Parking mode records footage at 2fps, enabling the dash cam to continuously record long periods of parking surveillance without increasing power consumption.
Energy Saving 2.0
Energy Saving 2.0 in Parking Surveillance mode records footage triggered by impacts only, allowing the dash cam to reduce its power consumption and remain in Parking mode for a longer duration.

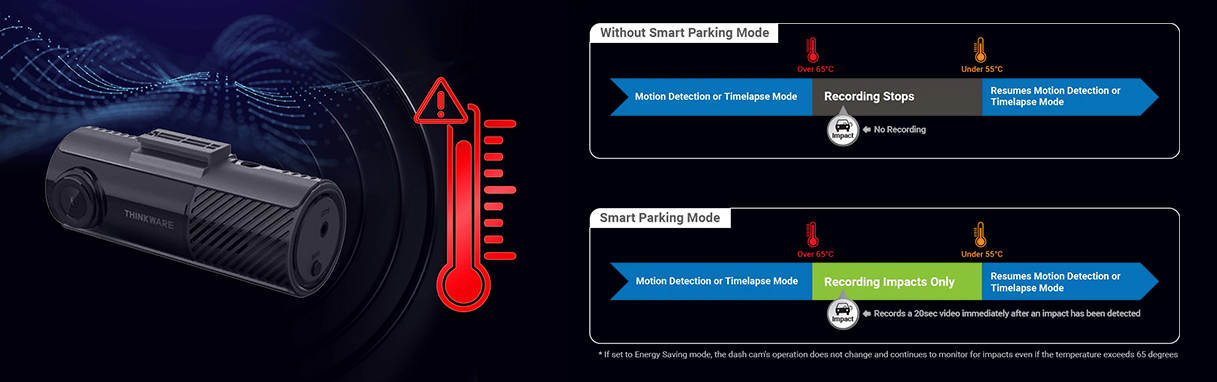

Smart Parking Mode
This safety feature prevents heat-related damage by automatically switching the F70PRO to a low-power mode if the temperature inside the vehicle gets too high during Parking mode.In this state, the dash cam records incidents triggered by impacts only until its operating temperature is safe again to resume Motion Detection or Timelapse Parking mode.
By adding in a genuine THINKWARE Dash Cam GPS Antenna (GPSANT) to the mix, this can help you keep track of the vehicle’s driving speed and precise location while identifying ideal routes on the map. The GPS also lets you accurately assess the details of the surrounding area and track your holiday routes for faster travels. In case of a road mishap, it supplies accurate readings of vehicle speed, time of the collision and the impact severity. *GPSANT required, sold separatelyCOMPREHENSIVE DRIVING INFORMATION
WITH GPS
This comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the GPSANT add-on, it lets a driver know about a designated average speed zones in a specific area, as it notifies whenever a red light or speed camera is nearby, as well. *GPSANT required, sold separatelySAFETY CAMERA
ALERTS
HIGH-TEMPERATURE
PROTECTION SYSTEM
Like all THINKWARE dash cams, it has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.

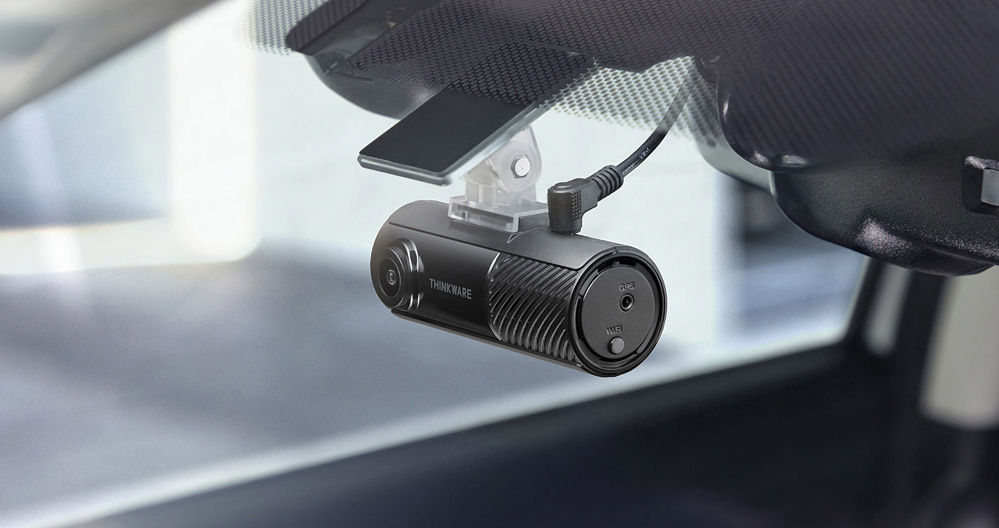

FAIL-SAFE
RECORDING
In case the power gets disconnected after an accident, the super capacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.
FORMAT-FREE 2.0
TECHNOLOGY
Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.
The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.PROPRIETARY THINKWARE DASH CAM
PC VIEWER

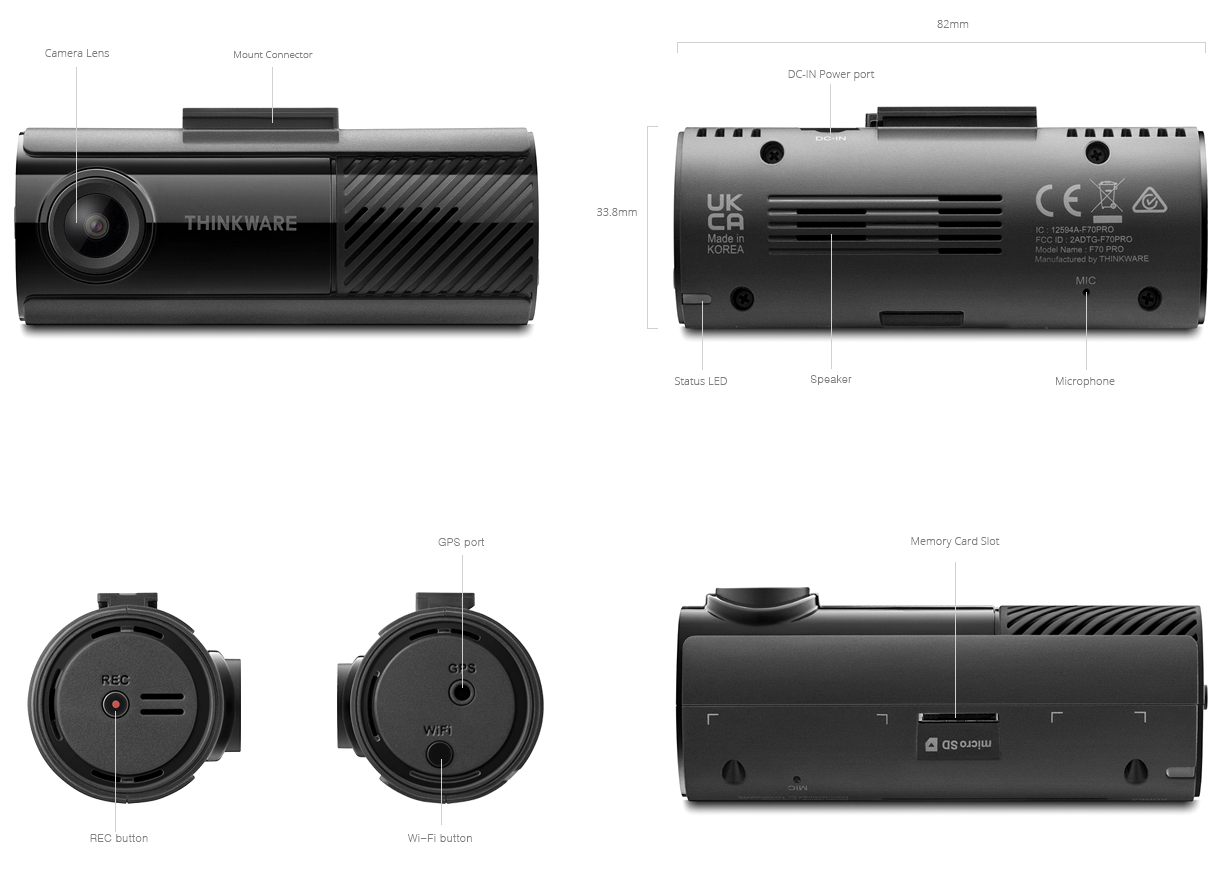

FULL SPECIFICATION
| Number of Channels | 1 |
|---|---|
| Resolution | 1080P (front) |
| Frames Per Second | 30 |
| Camera Angle | 140° |
| Image Sensor | 2.1 M Pixel 1/2.7" CMOS 1080P |
| Dimensions | 82.0 x 33.8 x 34.6 mm |
| Video Enhancement Technology | |
|
Dewarping |
Yes |
|
Wide Dynamic Range |
Yes |
|
Night Time Picture Correction |
Yes |
|
Intelligent Automatic Exposure |
Yes |
|
Noise Reduction |
Yes |
|
Advanced Video Clear |
Yes |
|
Super Night Vision 1.0 |
Yes (Parking Surveillance Mode Only) |
|
Super Night Vision 2.0 |
- |
| WiFi | Yes |
| GPS | Optional (requires GPSANT) |
| G-Sensor | Yes |
| Super Capacitor / Battery | Super Capacitor |
| High Temperature Protection | Yes |
| Operating/Storage Temperature | -10C to +60C / -20C to +70C |
| Power Input | DC 12/24V |
| Power Consumption | 2.8W (mean) |
| Voltage Detection / Cut Off | Yes |
| Accessory Socket Power Adaptor | Included |
| Hard Wire Kit (HWC) | Optional (sold separately) |
| Mounting Type | Adhesive |
| Thinkware Connect | - |
| Safety Camera Alerts | |
|
Fixed Speed Camera |
Yes (requires GPSANT) |
|
Mobile Speed Camera Zone |
Yes (requires GPSANT) |
|
Average Speed Camera Zone |
Yes (requires GPSANT) |
|
Red Light Camera |
Yes (requires GPSANT) |
| Advanced Driver Alert System (ADAS) | - |
| Recording Modes | |
|
Continuous Loop |
Yes |
|
Impact / Incident |
Yes |
|
Manual |
Yes |
|
Park Surveillance (Motion & Impact Detection, Energy Saving Mode and Smart Parking Mode) |
Yes (requires HWC) |
|
Audio / Voice |
Yes |
| Video Format | MP4 |
| Video CODEC | H.264 |
| Audio CODEC | PCM |
| Memory Card Capacity / Class | Supports up to 128GB / UH-1 |
| Warranty | 2 Years (on camera hardware, 12 months on micro SD) |
| Country of Manufacture | Korea |
INCLUSIONS
DASH CAM
POWER CABLE
MOUNT
QUICK START GUIDE
MICRO SD CARD
(Capacity Model Dependent)
ADHESIVE CABLE CLIPS
