Q800PRO

Q800PRO

Driven by the latest Sony Exmor R Starvis sensor, Q800PRO captures 2K resolution, producing 4X more vivid and blind-spot-free videos of your journeys like never before. Its resolution has been reinforced with Video Enhancement Technology including Super Night Vision 2.0, so you won't miss a single detail be it day or night. Q800PRO's packed with built-in THINKWARE CONNECT, a cloud-based system with geo-fencing, vehicle locator and impact notifications for peace of mind.




Dual Channel
Recording

Front-facing dashboard camera with rear camera input



*Rear Cam Sold Separately

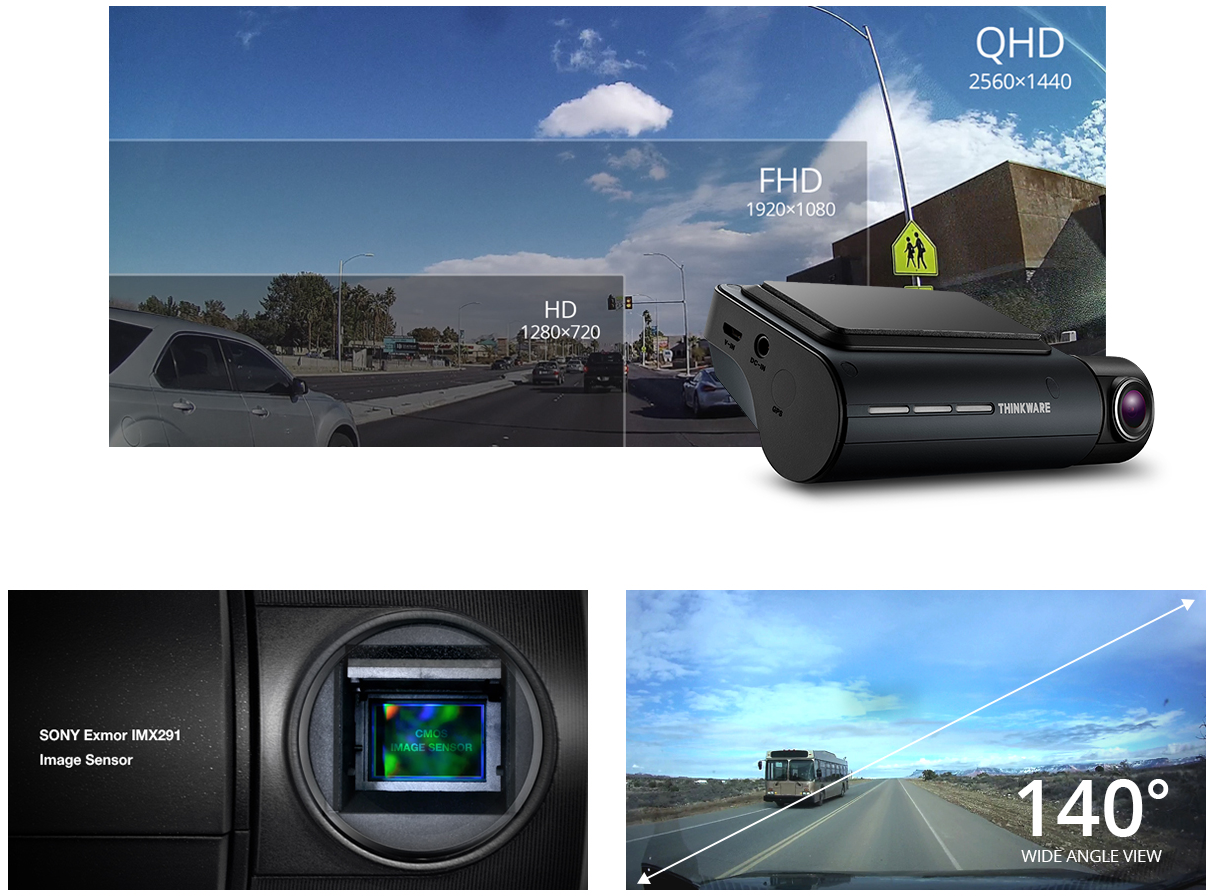

Quad HD
Video Recording

4X more vivid than
HD resolution



*Rear Cam Sold Separately
1080P FULL HD




Video Enhancement Technology

High Dynamic Range (HDR)
| Dewarping Image Correction




140° Wide Angle
Field of View

Superb coverage that minimises blind spots at all times




Various Autonomous
Recording Modes

Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording




Thinkware
Cloud*

 Live View | Geo Fence | Locate Vehicle | Impact Notification



* During continuous driving mode only. Internet and Hotspot Connection Required.


Built-in WiFi

Control, manage and update the firmware or click, download or delete recorded videos whenever needed via Thinkware™ app




Advanced Driver
Alert System (ADAS)

Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS) |
Urban Forward Collision System
(uFCWS) | Front Vehicle
Departure Warning (FVDW)




Energy Save
Park Mode

Parking surveillance video recordings of up to 3 times longer



*HWC Required




Time Lapse
Park Mode

Lengthens parking surveillance
recording time



*HWC Required




Super Night Vision
2.0

Enables for enhanced
low light recording




Comprehensive Driving
Information with GPS

Accurate vehicle speed reading and location tracking for peace of mind




Safety Camera Alerts

Timely Speed, Red Light Cameras and Mobile Speed Zones notifications




High Temperature
Protection
(Integrated
Thermal Protection)

Unscathed SD card and video files even in the hottest environment




Fail Safe Recording

Ensures safe storage of recordings in case power gets disconnected after an accident




Memory Card

Format Free 2.0
Supports up to 128GB




PC Viewer

Proprietary THINKWARE
Dash Cam PC Viewer




Warranty

2 Years







HIGH DEFINITION
VIDEO QUALITY

Equipped with CMOS Image Sensors, this lets you record crisp and clear 2K QHD 1440P front and 1080P full HD rear cam videos be it daytime or nighttime. Even better, it sports a 140-degree wide angle lens view that minimises blind spots across the board.

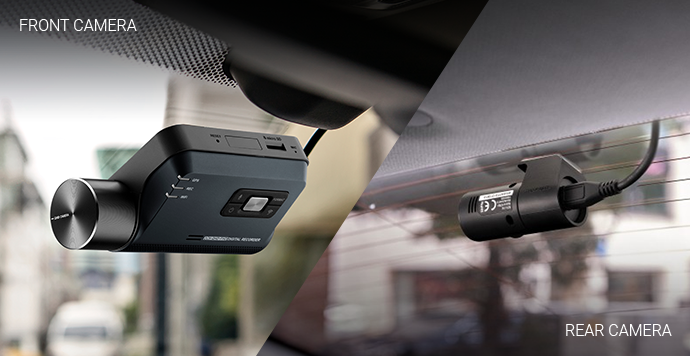

DUAL
CHANNEL

Equipped with an input for a second camera, this can take your surveillance capabilities to the next tier. Just add in the F800PRA 1080P HD rear camera to the mix to get peace of mind across the board, as doing so lets you keep an eye on what’s happening behind your vehicle, available as an optional extra, included in 2 channel kits.


STATE-OF-THE-ART
VIDEO ENHANCEMENTS


Wide Dynamic Range (WDR)

Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images.




Nighttime Picture Quality Correction

Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive.




Automatic Exposure

A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times.




SUPER NIGHT VISION
2.0

Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind.


VARIOUS AUTONOMOUS
RECORDING MODES


Continuous
Recording Mode

Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.


Event Recording
Mode

Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.


Manual
Recording Mode

Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.


Advanced Parking
Surveillance + Time Lapse + Energy Save Park Mode

Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.


Audio / Voice
Recording

Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.


ENERGY SAVE
PARK MODE

This feature significantly trims down your power consumption to up to 1/3 less, while giving you as much as 3x longer video recording capability. Serves you well when you’re on a vacation or you need to leave the vehicle unattended for quite some time, the Energy Save Parking Mode instantly puts the dash cam to sleep after capturing 20-second footage of an impact or motion detected by the G-Sensor.

*HWC required, sold separately

TIME LAPSE
PARK MODE

Records at 2 frames per second, the Time Lapse Park Mode makes it possible to reduce the video files’ size; hence, this can capture videos from your parked vehicle up to 16 times longer than other dash cams can. This ensures important clips or images will stay safe in its memory for the long haul.

*HWC required, sold separately


THINKWARE
CLOUD*




Live View*

Watch what is happening in real-time. Monitor your vehicle with your smartphone, no matter where you are. Live Resolution: 768x452p @15fps (available during Continuous Driving Mode)
* Live View: Up to 300 minutes per month. (Reset on every 1st day of the month)




Geo Fencing*

Aside from alerting you about the vehicle’s whereabouts, Geo-Fencing lets you know whenever your vehicle goes inside or outside a certain area. This will send you a push notification via the THINKWARE CLOUD mobile app. Even better, the Geo-Fence’s radius can be set by typing in the address or simply using a pin point on the mobile app itself.




Locate Vehicle*

This helps you find the vehicle’s real-time position using its Locate Vehicle function. As it updates every 10 seconds, it displays the current location, driving speed information and the direction it’s headed with the help of the Google Map.




Driving Impact Notification*

Using the THINKWARE Cloud app, this sends an alert to the user’s smartphone, should the vehicle figure in a collision or accident. On the other hand, the owner’s registered contacts can be notified in case the driver gets involved in a car crash, as well.




* The Thinkware Cloud features will only work when the vehicle ignition is on and the dash cam is in Continuous Driving Mode. The Thinkware Cloud App must be downloaded to the Smartphone and an account must be registered. The dash cam must be connected via hotspot to a smartphone or wifi dongle that is located within the vehicle at all time to use the Cloud Features. This requires an internet connection with data available. Carrier fees and charges will apply.


BUILT-IN WIFI
SMARTPHONE APP CONNECTIVITY

Connect your Thinkware Dash Cam directly via Wifi to your iOS or Android Smartphone using the THINKWARE™ CLOUD App. Access CLOUD features, view footage, download recordings and manage dash cam settings all from your smartphone.


Download the
THINKWARE CLOUD smartphone app FREE
app store
google play

Advanced Driver Alert System
(ADAS)

Helps you stay safe on the road with alerts for lane departures, front vehicle departures, and potential forward collisions.



LDWS

Lane Departure Warning System

Designed for distracted or drowsey drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety.

FCWS / uFCWS

High Speed / Urban Forward Collision Warning System

Keep a safe distance from the vehicle you’re following with the help of FCWS / uFCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you at a speed of over 30 kilometres per hour (km/h) (in expressways) and under 30 km/h in a busy, congested city. This dash cam issues a three-level early warning to the driver, depending on the danger of the possible collision.

FVDW

Front Vehicle Departure Warning

When stopped at an intersection or a traffic jam, this dash cam's Front Vehicle Departure Warning (FVDW) intelligent guidance system lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time.




COMPREHENSIVE DRIVING INFORMATION
WITH GPS

Using the GPS data can precisely pinpoint the vehicle’s location and routes with its driving speed on the map on video playback. The GPS helps you accurately assess the status of the accident by providing you with the vehicle speed, the direction of the collision and the severity of impact. The dash cam not only records driving footage but can also be used to track and recall past driving routes whether it be work or holiday routes.




RED LIGHT





SPEED CAMERA





RED LIGHT & SPEED CAMERA





AVERAGE SPEED





MOBILE ZONE



SAFETY CAMERA
ALERTS

This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Since it sports a built-in GPS, it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.


HIGH-TEMPERATURE
PROTECTION SYSTEM


Like all THINKWARE dash cams, this one comes with a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts the Q800PRO down to prevent it from overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.

FAIL-SAFE
RECORDING


In case the power gets disconnected after an accident, the dash cam's supercapacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.


FORMAT-FREE 2.0
TECHNOLOGY

Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.


PROPRIETARY THINKWARE DASH CAM
PC VIEWER

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.

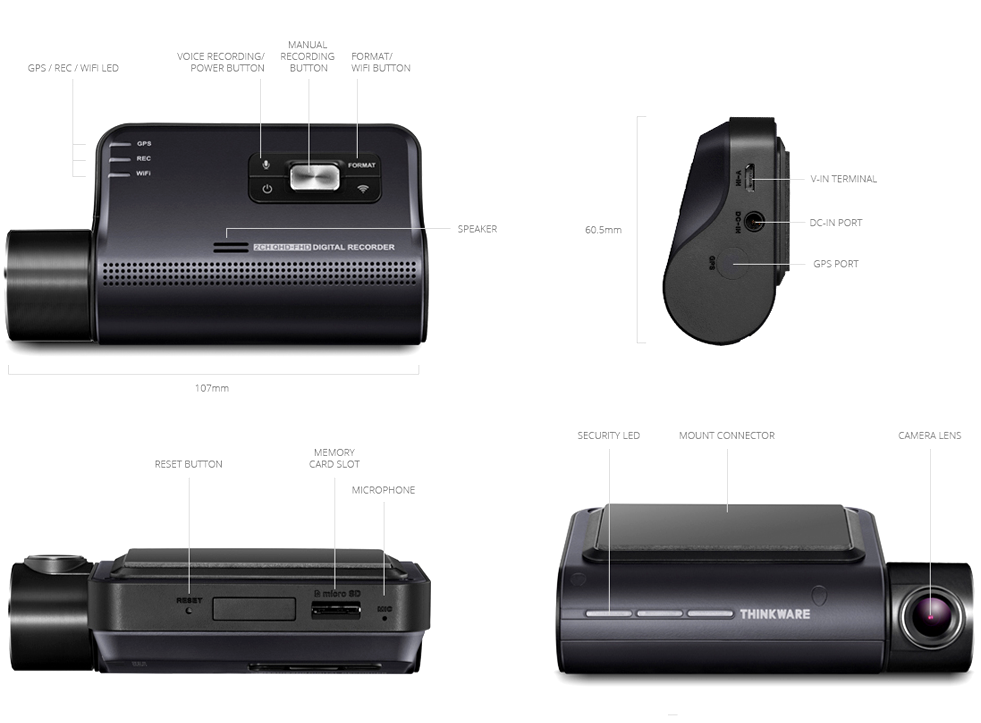

FULL SPECIFICATION

Number of Channels 2
Resolution 2K 1440P (front) / full HD 1080P (rear)
Frames Per Second 30
Camera Angle 140° (front) / 140° (rear)
Image Sensor / Camera Type Front: Sony Starvis / 5.14M Pixels / 1/2.8” CMOS
Rear: Sony Starvis / 2.13M Pixels / 1/2.9” CMOS
Dimensions / Weight 107 x 60.5 x 30mm / 104.5g
Video Enhancement Technology

Wide Dynamic Range

Yes

Night Time Picture Correction

Yes

Intelligent Automatic Exposure

Yes

Noise Reduction

Yes

Advanced Video Clear

Yes

Super Night Vision 1.0

-

Super Night Vision 2.0

Yes
WiFi Yes
GPS Yes
G-Sensor Yes
Display Screen(Size) -
Super Capacitor / Battery Super Capacitor
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 2 CH 4.2W / 1 CH 2.9W (mean)
Voltage Detection / Cut Off Yes
Accessory Socket Power Adaptor Included in Single Camera Kit
Hard Wire Kit (HWC) Included in Dual Camera Kit
Mounting Type Adhesive
Dual Save Technology -
Thinkware Connect

Live View

Yes

Geo Fence

Yes

Vehicle Location

Yes

Impact Notification

Yes

Video Storage

Yes
Camera Alerts

Fixed Speed Camera

Yes

Mobile Speed Camera Zone

Yes

Average Speed Camera Zone

Yes

Red Light Camera

Yes
Advanced Driver Alert System (ADAS)

Lane Departure

Yes

Urban Forward Collision

Yes

High Speed Forward Collision

Yes

Front Vehicle Departure

Yes
Recording Modes

Continuous Loop

Yes

Impact / Incident

Yes

Manual

Yes

Park Motion Detect

Yes (requires HWC)

Park Impact / Incident

Yes (requires HWC)

Park Time Lapse

Yes (requires HWC)

Park Energy Save

Yes (requires HWC)

Audio / Voice

Yes
Video Format MP4
Video CODEC H264
Audio CODEC HE-AAC
Memory Card Capacity / Class Supports up to 128GB
Warranty 2 Years (on camera hardware, 12 months on micro SD)
Country of Manufacture Korea

Introducing the Q800PRO - Unboxing



Thinkware - CES Q800PRO

CES 2019 Timelapse - Q800PRO











SINGLE CAMERA KIT




MICRO SD CARD



(Capacity Model Dependent)


ADHESIVE CABLE CLIPS




SPARE 3M ADHESIVE





DUAL CAMERA KIT


ADHESIVE CABLE CLIPS




SPARE 3M ADHESIVE
