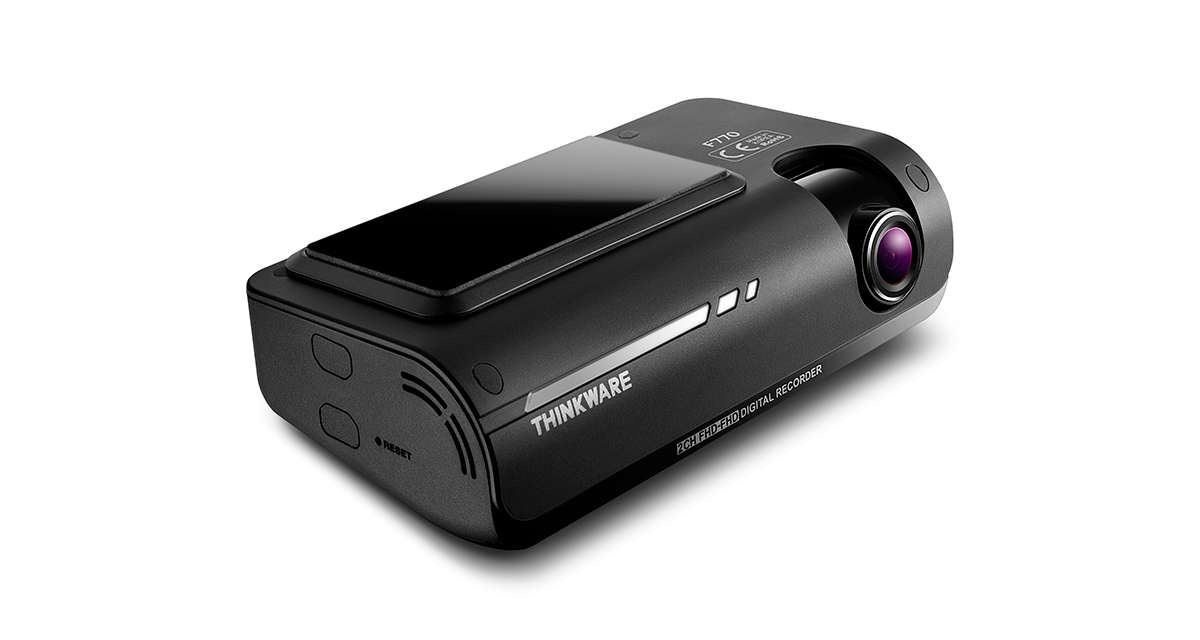

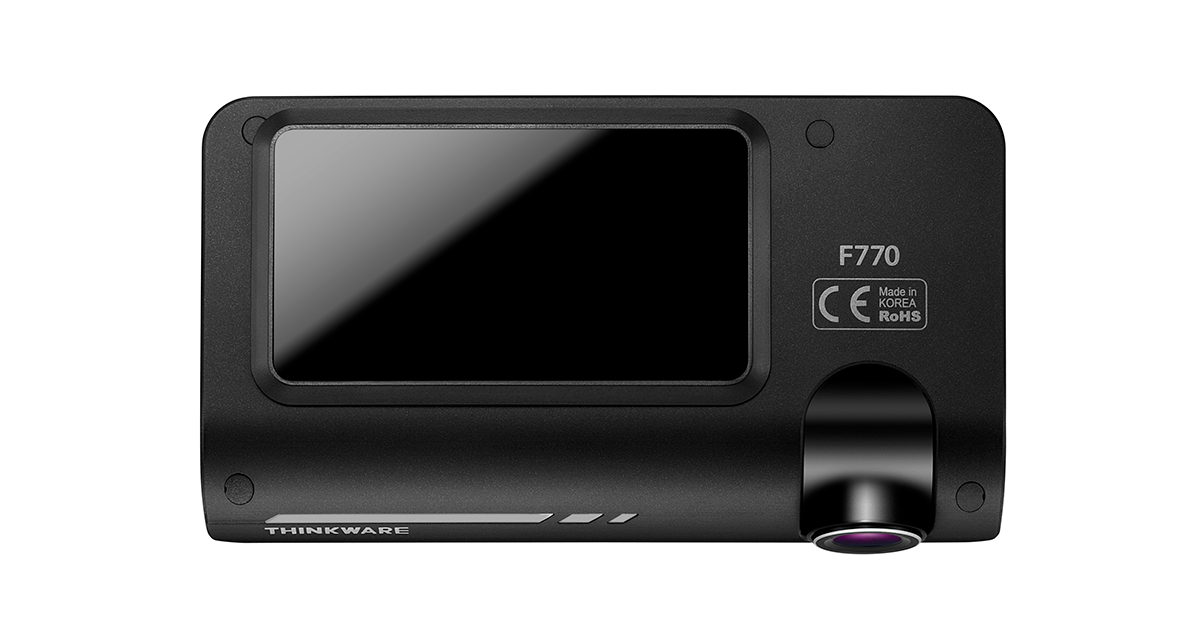

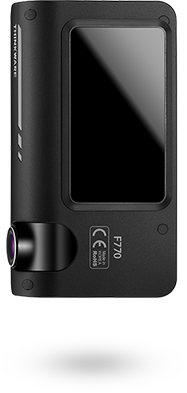

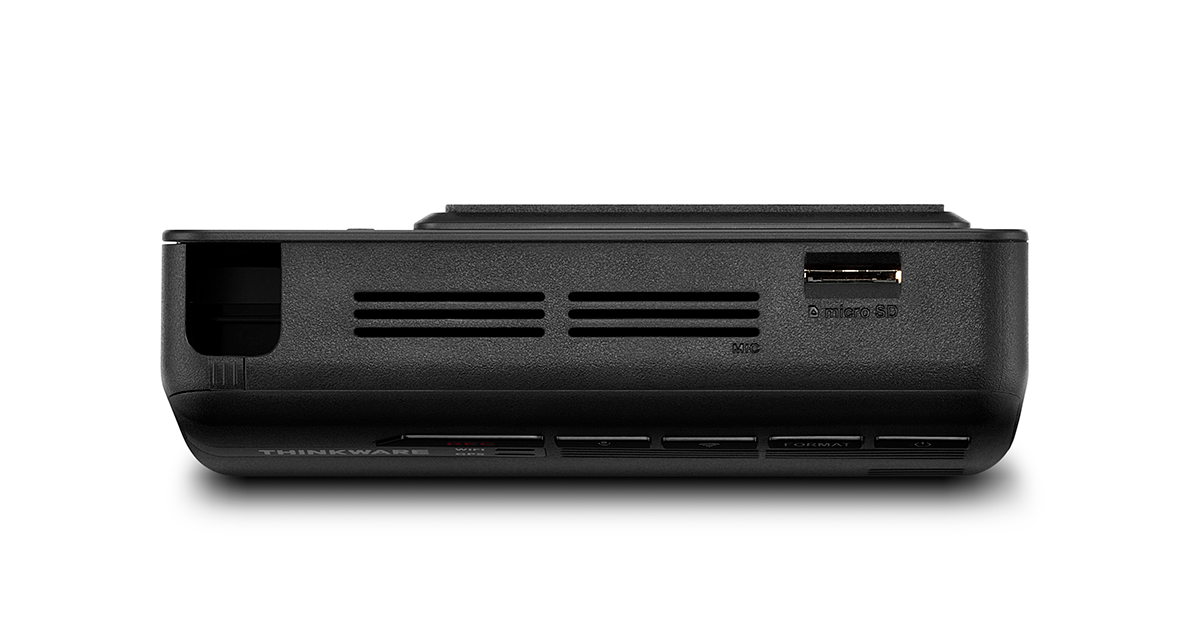

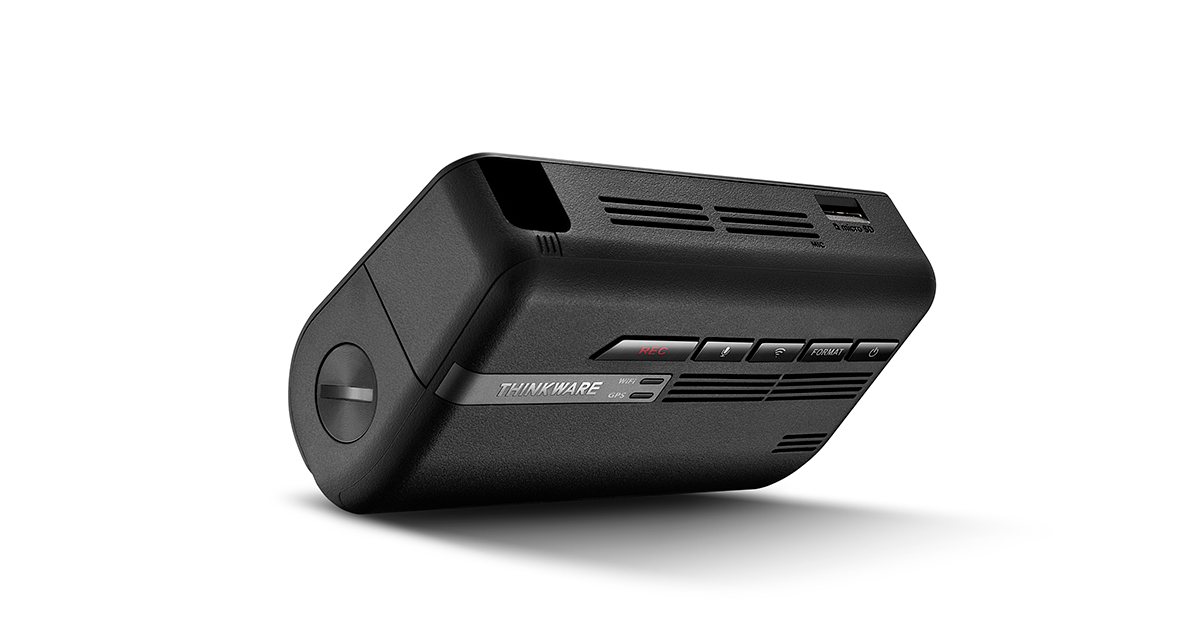

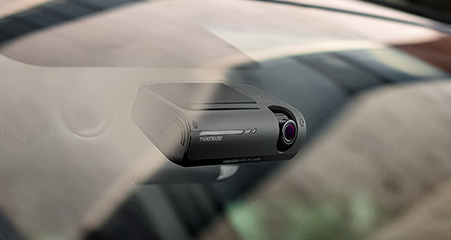

F770 front and rear cameras are equipped with Sony Exmor sensors, making it one of the most advanced dash cams in the market. Recording clear, crisp and wide angle full high definition 1080p videos at 30 frames per second front and rear, it also captures enhanced footage in low light places during park mode using Super Night Vision 1.0. Built in WiFi enables smartphone connectivity and GPS on-board provides more details on playback.




Dual Channel
Recording

Front-facing dashboard camera with rear camera input



*Rear Cam Sold Separately




High Definition
Video Recording

Clear and crisp video files be it daytime or nighttime



*Rear Cam Sold Separately




Video Enhancement Technology

High Dynamic Range (HDR)
| Dewarping Image Correction




140° Wide Angle
Field of View

Superb coverage that minimises blind spots at all times




Various Autonomous
Recording Modes

Continuous | Incident | Manual | Parking | Audio | SOS




Built-in WiFi

Control, manage and update the firmware or click, download or delete recorded videos whenever needed via Thinkware™ app




Advanced Driver
Alert System (ADAS)

Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS)




Time Lapse
Park Mode

Lengthens parking surveillance
recording time



*HWC Required




Super Night Vision
1.0

Enables for enhanced
low light recording



*HWC Required




Comprehensive Driving
Information with GPS

Accurate vehicle speed reading and location tracking for peace of mind




Safety Camera Alerts

Timely Speed, Red Light Cameras and Mobile Speed Zones notifications




Dual Save
Technology

Securely saves large impact incident recordings on memory card and camera




High Temperature
Protection
(Integrated
Thermal Protection)

Unscathed SD card and video files even in the hottest environment




Fail Safe Recording

Ensures safe storage of recordings in case power gets disconnected after an accident




Memory Card

Format Free 2.0
Supports up to 64GB




PC Viewer

Proprietary THINKWARE
Dash Cam PC Viewer




Warranty

2 Years









HIGH DEFINITION
VIDEO QUALITY

Equipped with CMOS Image Sensors, this lets you record crisp and clear full 1080p HD front and rear cam videos be it daytime or nighttime. Even better, it sports a 140-degree wide angle lens view that minimises blind spots across the board.

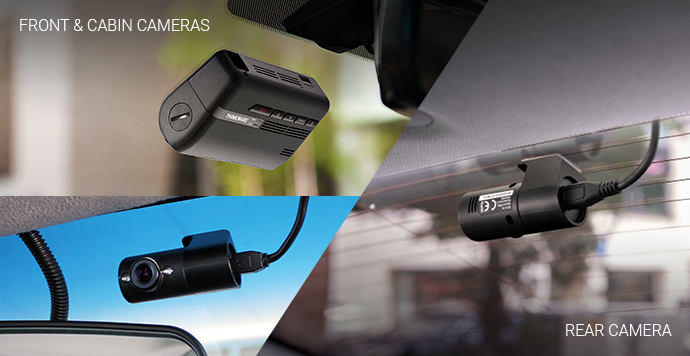

DUAL
CHANNEL

Equipped with an input for a second camera, this can take your surveillance capabilities to the next tier. Just add in the THINKWARE F77RA 1080P HD rear camera to the mix to get peace of mind across the board, as doing so lets you record behind the vehicle. Alternatively you can add the THINKWARE In-cabin (CABCAMIR*) Camera to the fold, especially if you’re in the transportation and logistics business. CABCAMIR* is for operators who want in cabin recordings, ideal for day-and-night monitoring of taxis, trucks or fleet vehicles. CABCAMIR* comes with Infrared LEDs so nighttime video recording won’t be an issue.

* Cable Cover on F770 Dash Cam will not close when CABCAMIR is connected


STATE-OF-THE-ART
VIDEO ENHANCEMENTS


Wide Dynamic Range (WDR)

Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images.




Nighttime Picture Quality Correction

Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive.




Automatic Exposure

A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times.




SUPER NIGHT VISION
1.0

Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind.

*Enabled during parking mode when installed with optional HWC


VARIOUS AUTONOMOUS
RECORDING MODES


Continuous
Recording Mode

Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.




Event Recording
Mode

Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.




Manual
Recording Mode

Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.




Advanced Parking Surveillance + Time Lapse Mode

Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.




Audio / Voice
Recording

Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.



TIME LAPSE
PARK MODE

Records at 2 frames per second, the Time Lapse Park Mode makes it possible to reduce the video files’ size; hence, this can capture videos from your parked vehicle up to 16 times longer than other dash cams can. This ensures important clips or images will stay safe in it's memory for the long haul.

*HWC required, sold separately

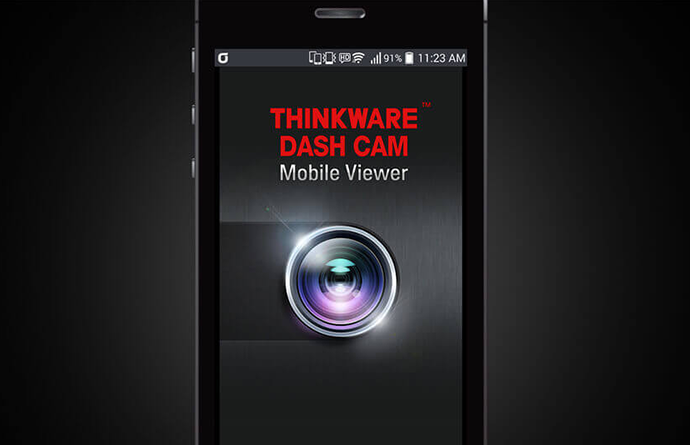

BUILT-IN WIFI
SMARTPHONE APP CONNECTIVITY

Connect your Thinkware Dash Cam directly via Wifi to your iOS or Android Smartphone using the THINKWARE™ DASH CAM VIEWER App. View footage, download recordings and manage dash cam settings all from your smartphone.


Download the THINKWARE DASH CAM VIEWER smartphone app FREE
app store
google play


ADVANCED DRIVER ALERT SYSTEM
(ADAS)

LDWS

Lane Departure Warning System

Designed for distracted or drowsy drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety.

FCWS

Forward Collision Warning System

Keep a safe distance from the vehicle you’re following with the help of FCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you. It issues a three-level early warning to the driver, depending on the danger of the possible collision.


COMPREHENSIVE DRIVING INFORMATION
WITH GPS

Using the GPS data can precisely pinpoint the vehicle’s location and routes with its driving speed on the map on video playback. The GPS helps you accurately assess the status of the accident by providing you with the vehicle speed, the direction of the collision and the severity of impact. The dash cam not only records driving footage but can also be used to track and recall past driving routes whether it be work or holiday routes.


RED LIGHT



SPEED CAMERA



RED LIGHT & SPEED CAMERA



AVERAGE SPEED



MOBILE ZONE



SAFETY CAMERA
ALERTS

This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the built-in GPS, it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.


DUAL SAVE
TECHNOLOGY

In the case of a serious incident, the recording will automatically save to the camera and SD card. Should the SD card get damaged during the incident or the file transfer doesn’t complete, the footage can easily be accessed via the cameras internal memory. This prevents the loss of data in case of a severe collision.


HIGH-TEMPERATURE
PROTECTION SYSTEM


Like all THINKWARE dash cams, it has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.

FAIL-SAFE
RECORDING


In case the power gets disconnected after an accident, the supercapacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.


FORMAT-FREE 2.0
TECHNOLOGY

Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.


PROPRIETARY THINKWARE DASH CAM
PC VIEWER

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.



FULL SPECIFICATION



Number of Channels 2
Resolution Full HD 1080P (front) / Full HD 1080P (rear)
Frames Per Second 30
Camera Angle 140° (front) / 144° (rear)
Image Sensor / Camera Type Front: Sony EXMOR / 2.19M Pixels / 1/2.9” CMOS
Rear: Sony EXMOR / 2.19M Pixels / 1/2.9" CMOS
Dimensions / Weight 110 x 60.41 x 30.75mm / 131.5g
Video Enhancement Technology

Wide Dynamic Range

Yes

Night Time Picture Correction

Yes

Intelligent Automatic Exposure

Yes

Noise Reduction

Yes

Advanced Video Clear

Yes

Super Night Vision 1.0

Yes (requires HWC)

Super Night Vision 2.0

-
WiFi Yes
GPS Yes
G-Sensor Yes
Display Screen(Size) -
Super Capacitor / Battery Super Capacitor
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 2 CH 3.5W / 1 CH 2.5W (mean)
Voltage Detection / Cut Off Yes
Accessory Socket Power Adaptor Included in Single Camera Kit
Hard Wire Kit (HWC) Included in Dual Camera Kit
Mounting Type Adhesive
Dual Save Technology Yes
Thinkware Connect

Live View

-

Geo Fence

-

Vehicle Location

-

Impact Notification

-

Video Storage

-
Camera Alerts

Fixed Speed Camera

Yes

Mobile Speed Camera Zone

Yes

Average Speed Camera Zone

Yes

Red Light Camera

Yes
Advanced Driver Alert System (ADAS)

Lane Departure

Yes

Urban Forward Collision

-

High Speed Forward Collision

Yes

Front Vehicle Departure

-
Recording Modes

Continuous Loop

Yes

Impact / Incident

Yes

Manual

Yes

Park Motion Detect

Yes (requires HWC)

Park Impact / Incident

Yes (requires HWC)

Park Time Lapse

Yes (requires HWC)

Park Energy Save

-

Audio / Voice

Yes
Video Format MP4
Video CODEC H264
Audio CODEC PCM
Memory Card Capacity / Class Supports up to 64GB / UH-1
Warranty 2 Years (on camera hardware, 12 months on micro SD)
Country of Manufacture Korea

Introducing the Thinkware F770 Dash Cam.

F770 Timelapse parking mode









SINGLE CAMERA KIT




QUICK START GUIDE




MICRO SD CARD



(Capacity Model Dependent)


ADHESIVE CABLE CLIPS





DUAL CAMERA KIT


QUICK START GUIDE




MICRO SD CARD



(Capacity Model Dependent)


ADHESIVE CABLE CLIPS
