U1000

U1000

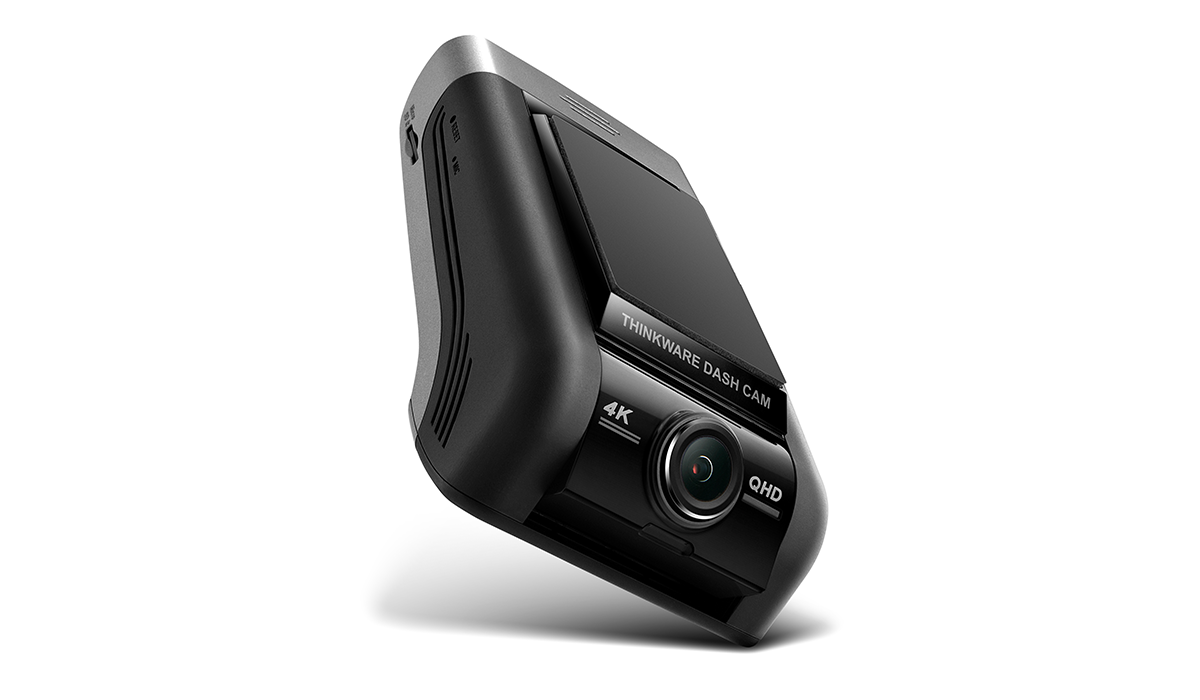

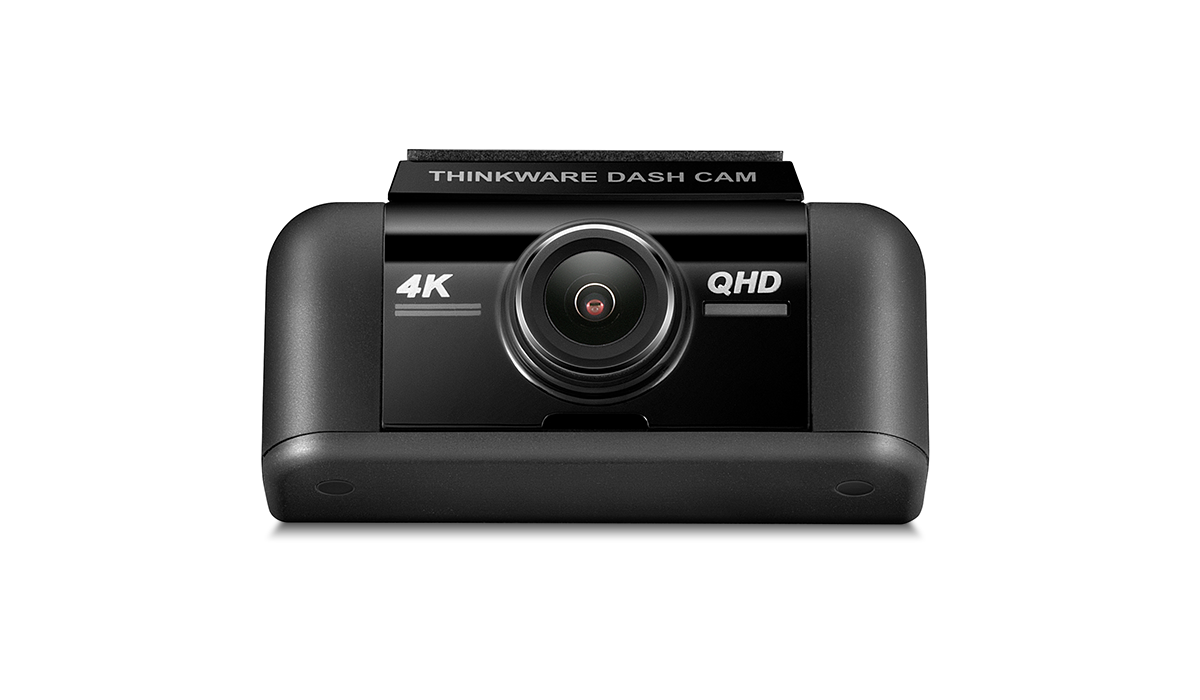

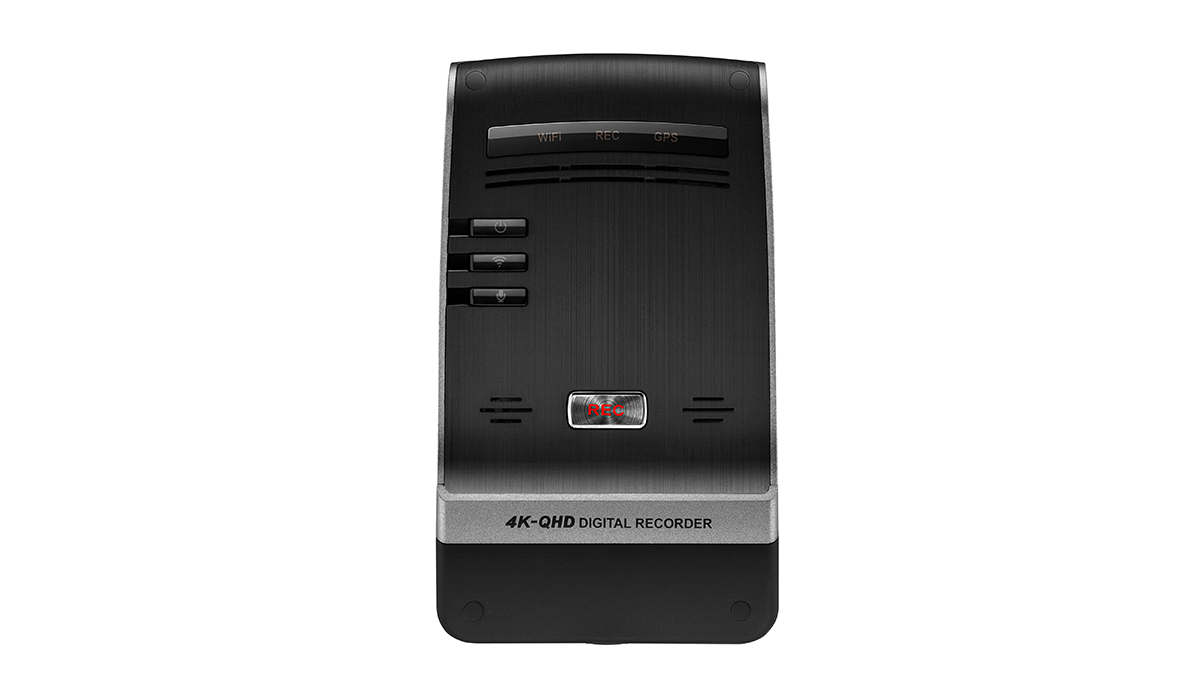

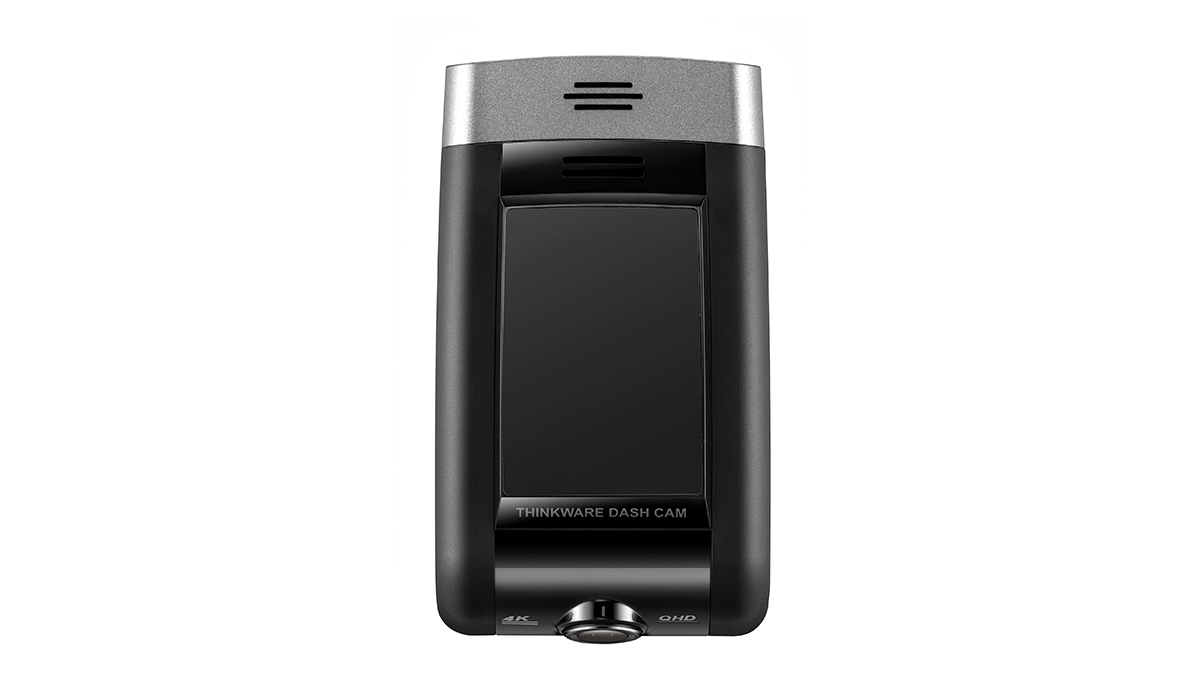

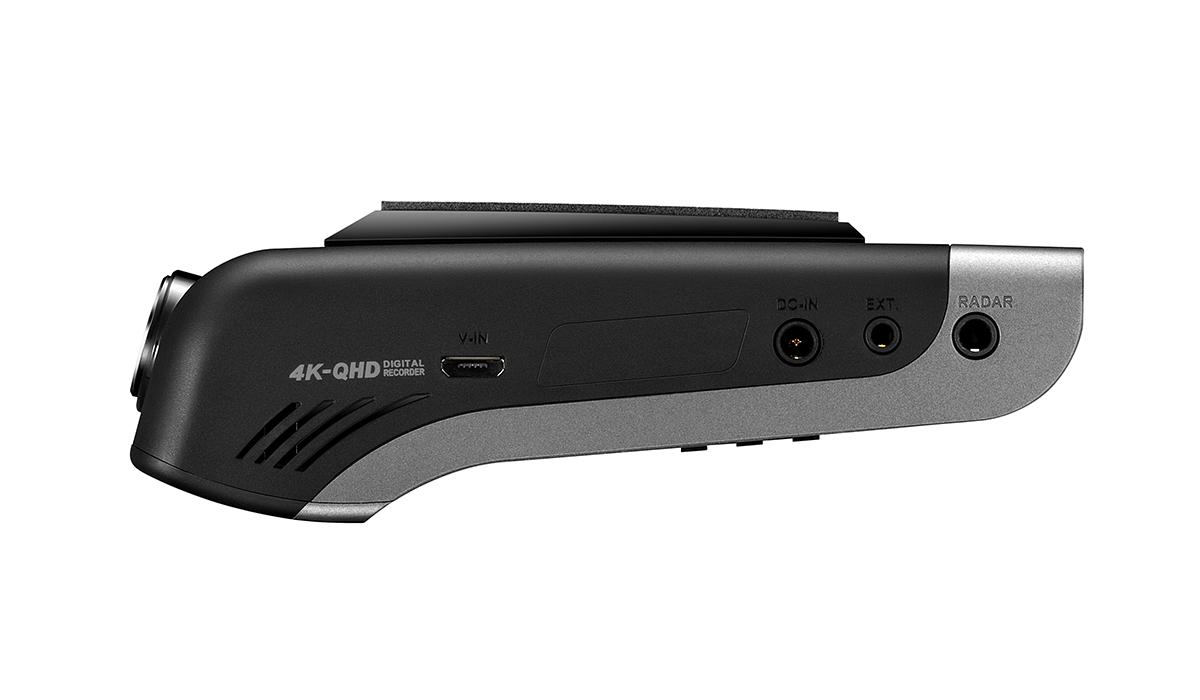

THINKWARE’s dash cam model U1000 captures true 4K UHD resolution at the front and 2K QHD resolution at the rear, making it one of the highest resolution 2 channel dash cams in the market! Housed in a low profile and modern design, the U1000 brings to the table the latest Cloud Connected features including Live View, Locate Vehicle, Geo-Fencing and Impact Notifications, along with other important driver safety features such as ADAS and safety camera alerts.




Dual Channel
Recording

Front-facing dashboard camera with rear camera input




4K UHD
Video Recording

From the front cam & 2K QHD rear cam

*Rear Cam Sold Separately


State of the Art
Video Enhancement

Wide Dynamic Range (WDR) | Nighttime Picture Quality Correction | Automatic Exposure




150° Wide Angle
Field of View

Superb coverage that minimises blind spots at all times




Various Autonomous
Recording Modes

Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording




Thinkware
Cloud*

Live View | Geo Fence | Locate Vehicle | Impact Notification

* Internet and Hotspot Connection Required.




Built-in
WiFi

Control, manage and update
the firmware or check, download or delete recorded videos whenever needed via
THINKWARE™ app




Advanced Driver
Alert System (ADAS)

Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS) |
Urban Forward Collision System
(uFCWS) | Front Vehicle
Departure Warning (FVDW)




Energy Save
Park Mode

Parking surveillance video recordings of up to 3 times longer




Time Lapse
Park Mode

Lengthens parking surveillance
recording time




Super Night Vision
2.0

Enables for enhanced
low light recording




Comprehensive Driving
Information with GPS

Accurate vehicle speed reading and location tracking for peace of mind




Safety Camera Alerts

Timely Speed, Red Light Cameras and Mobile Speed Zones notifications




High Temperature
Protection
(Integrated
Thermal Protection)

Unscathed SD card and video files even in the hottest environment




Fail Safe Recording

Ensures safe storage of recordings in case power gets disconnected after an accident




Memory Card

Format Free 2.0
Supports up to 128GB




PC Viewer

Proprietary THINKWARE
Dash Cam PC Viewer




Warranty

2 Years

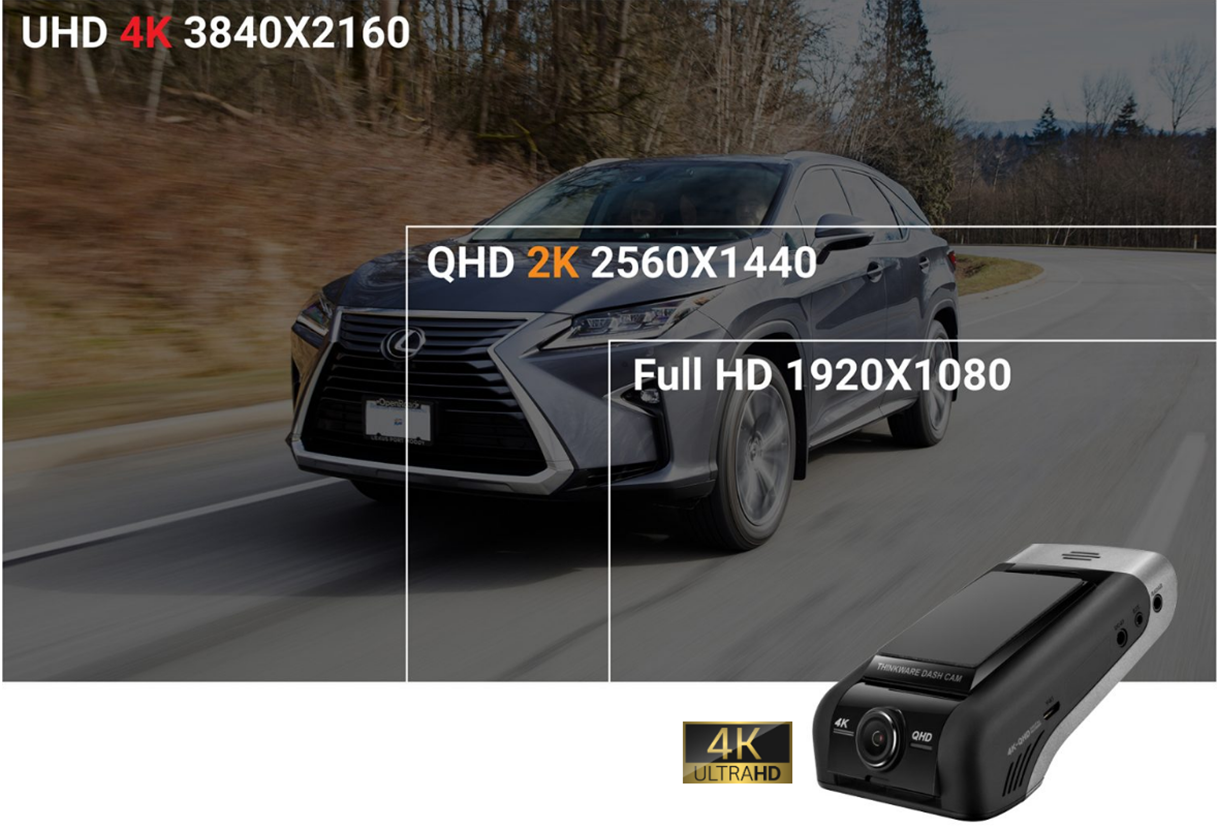

ULTRA HIGH DEFINITION
VIDEO QUALITY

Equipped with CMOS Image Sensors, this lets you record crisp and clear 4K UHD 2160P front and 1440P 2K QHD rear cam videos be it daytime or nighttime. Even better, it sports a 150-degree wide angle lens view that minimises blind spots across the board.

DYNAMIC 2K
AT 60FPS

U1000 also supports 2K QHD recording at 60 frames per second.
High frame rate delivers both smoother and sharper image.

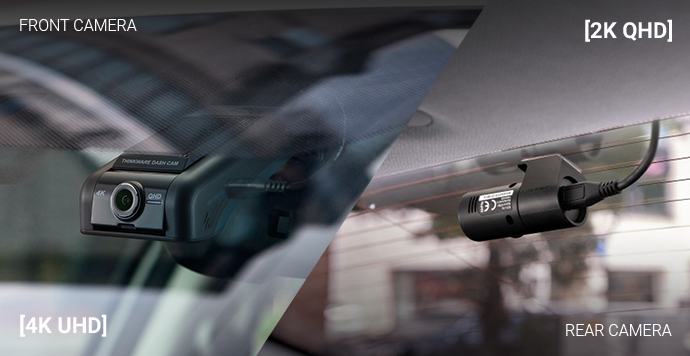

DUAL
CHANNEL

Equipped with an input for a second camera, this can take your surveillance capabilities to the next tier. Just add in the 2K 1440P QHD rear camera to the mix to get peace of mind across the board, as doing so lets you keep an eye on what’s happening behind your vehicle, available as an optional extra, included in 2 channel kits.


STATE-OF-THE-ART
VIDEO ENHANCEMENTS


Wide Dynamic Range (WDR)

Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images.




Nighttime Picture Quality Correction

Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive.




Automatic Exposure

A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times.

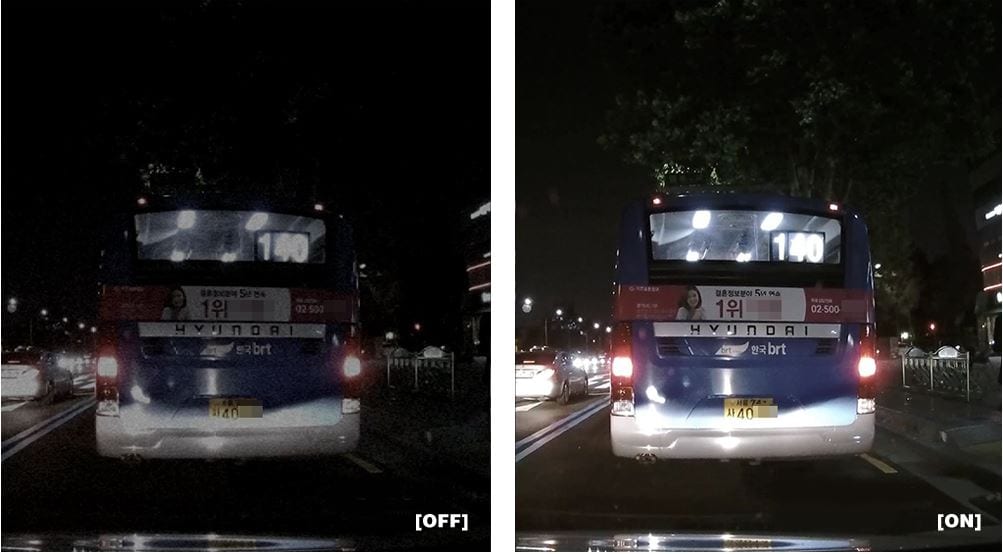

SUPER NIGHT VISION
2.0

Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind.

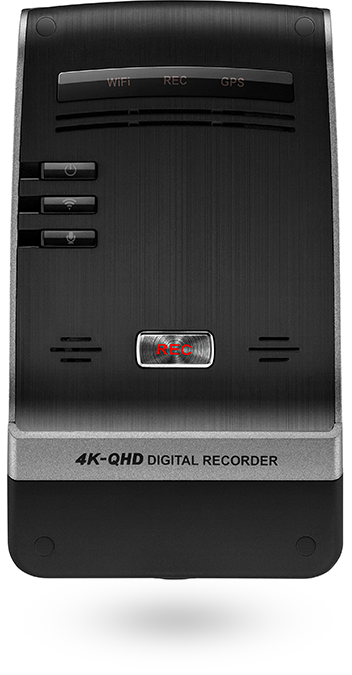

VARIOUS AUTONOMOUS
RECORDING MODES


Continuous
Recording Mode

Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.


Event Recording
Mode

Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.


Manual
Recording Mode

Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.


Advanced Parking
Surveillance + Time Lapse + Energy Save Park Mode

Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.


Audio / Voice
Recording

Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.


ENERGY SAVE
PARK MODE

This feature significantly trims down your power consumption to up to 1/3 less, while giving you as much as 3x longer video recording capability. Serves you well when you’re on a vacation or you need to leave the vehicle unattended for quite some time, the Energy Save Parking Mode instantly puts the dash cam to sleep after capturing 20-second footage of an impact or motion detected by the G-Sensor.

*HWC required, sold separately

TIME LAPSE
PARK MODE

Records at 2 frames per second, the Time Lapse Park Mode makes it possible to reduce the video files’ size; hence, this can capture videos from your parked vehicle up to 16 times longer than other dash cams can. This ensures important clips or images will stay safe in its memory for the long haul.

*HWC required, sold separately


THINKWARE
CLOUD




Live View

Watch what is happening in real-time. Monitor your vehicle with your smartphone, no matter where you are. Live Resolution: 768x452p @15fps (available during Continuous Driving Mode & Parking Surveillance Mode)
* Live View: Up to 300 minutes per month. (Reset on every 1st day of the month)


Geo Fencing

Aside from alerting you about the vehicle’s whereabouts, Geo-Fencing lets you know whenever your vehicle goes inside or outside a certain area. This will send you a push notification via the THINKWARE CLOUD mobile app. Even better, the Geo-Fence’s radius can be set by typing in the address or simply using a pin point on the mobile app itself.




Locate Vehicle

This helps you find the vehicle’s real-time position using its Locate Vehicle function. As it updates every 10 seconds, it displays the current location, driving speed information and the direction it’s headed with the help of the Google Map.




Driving Impact Notification

Using the THINKWARE Cloud app, this sends an alert to the user’s smartphone, should the vehicle figure in a collision or accident. On the other hand, the owner’s registered contacts can be notified in case the driver gets involved in a car crash, as well.




*The Thinkware Cloud App must be donwloaded to the Smartphone and an account must be registered. The dash cam must be connected via hotspot to a smartphone or wifi dongle that is located within the vehicle at all time to use the Cloud Features. This requires an internet connection with data available. Carrier fees and charges will apply.

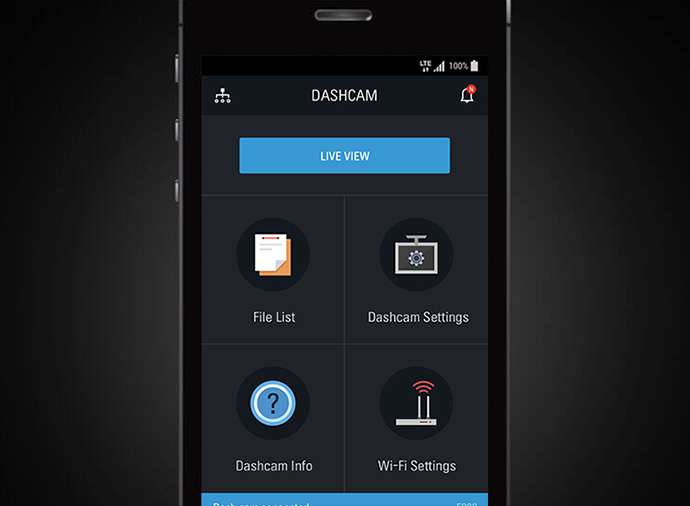

BUILT-IN WIFI
SMARTPHONE APP CONNECTIVITY

Connect your Thinkware Dash Cam directly via Wifi to your iOS or Android Smartphone using the THINKWARE™ CLOUD App. Access CLOUD features, view footage, download recordings and manage dash cam settings all from your smartphone.


Download the
THINKWARE CLOUD smartphone app FREE
app store
google play

Advanced Driver Alert System
(ADAS)

LDWS

Lane Departure Warning System

Designed for distracted or drowsey drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety.

FCWS / uFCWS

High Speed / Urban Forward Collision Warning System

Keep a safe distance from the vehicle you’re following with the help of FCWS / uFCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you at a speed of over 30 kilometres per hour (km/h) (in expressways) and under 30 km/h in a busy, congested city. This dash cam issues a three-level early warning to the driver, depending on the danger of the possible collision.

FVDW

Front Vehicle Departure Warning

When stopped at an intersection or a traffic jam, this dash cam's Front Vehicle Departure Warning (FVDW) intelligent guidance system lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time.


COMPREHENSIVE DRIVING INFORMATION
WITH GPS

This dash cam has built-in GPS, meaning, it can help you keep track of your vehicle’s driving speed, precise location while identifying ideal routes on the map. GPS also allows for an accurate assessment of a specific area’s details, letting you pin holiday routes for faster travels. In case of a road mishap, it supplies factual reading of vehicle speed, time of the collision and impact severity.


RED LIGHT



SPEED CAMERA



RED LIGHT & SPEED CAMERA



AVERAGE SPEED



MOBILE ZONE



SAFETY CAMERA
ALERTS

This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Since it sports a built-in GPS, it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.

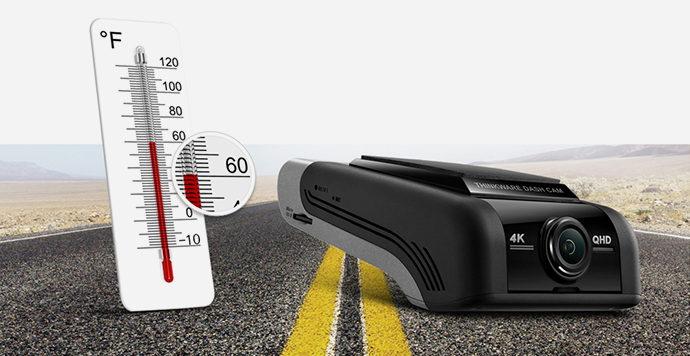

HIGH-TEMPERATURE
PROTECTION SYSTEM


Like all THINKWARE dash cams, this one comes with a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts the U1000 down to prevent it from overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.

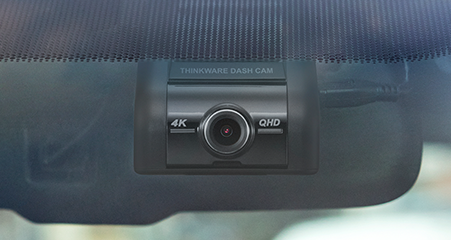

FAIL-SAFE
RECORDING


In case the power gets disconnected after an accident, the dash cam's supercapacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.


FORMAT-FREE 2.0
TECHNOLOGY

Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.


PROPRIETARY THINKWARE DASH CAM
PC VIEWER

The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.






CPL FILTER
INCLUDED

Install the INCLUDED THINKWARE Circular Polarising Filter CPLFLTR to your THINKWARE U1000 dash cam to eliminate lens flares, light reflections and windshield glares and see the quality of your video recordings improve significantly even during the nighttime. Using the guide points located on CPLFLTR, you can mount this on your THINKWARE U1000 dash cam model for enhanced colour clarity and better light exposure.

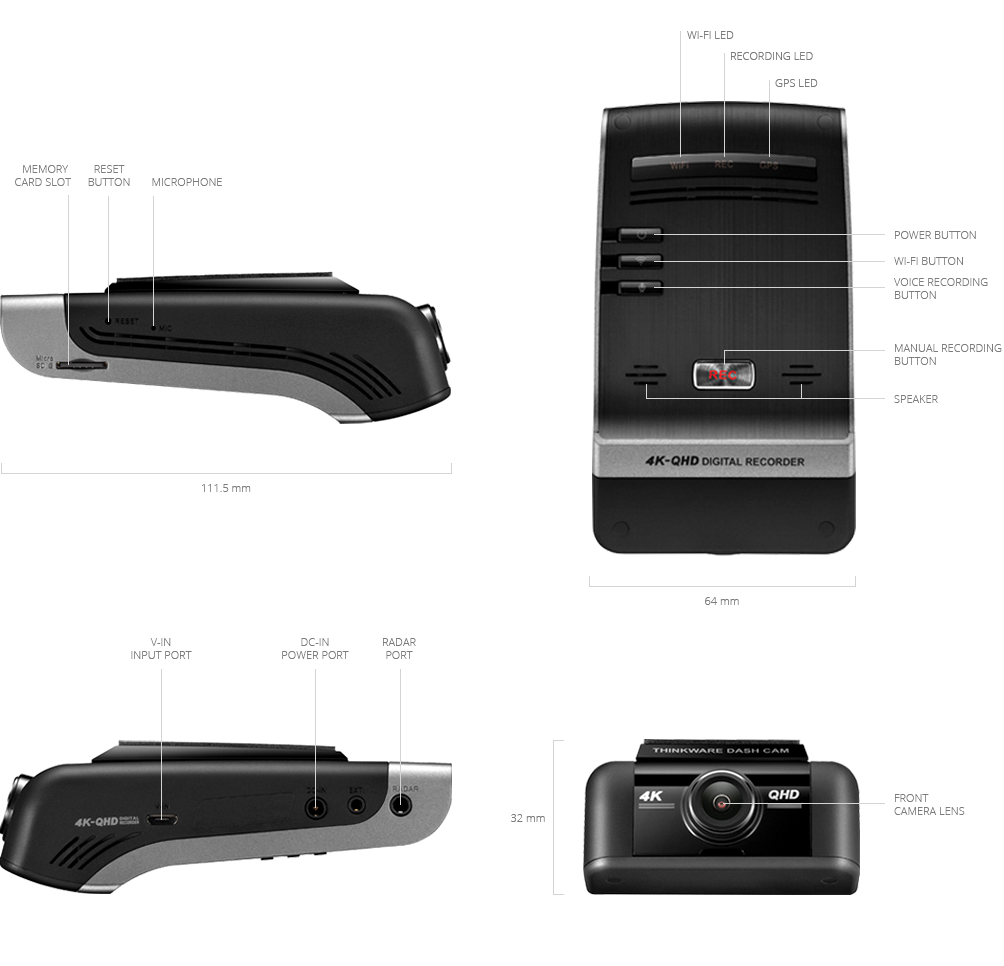

FULL SPECIFICATION

Number of Channels 2
Resolution 4K 2160P (front) / 2K 1440P (rear)
Frames Per Second 30 (60 if resolution is changed to 2K front + full HD rear)
Camera Angle 150° (front) / 156° (rear)
Image Sensor / Camera Type Front: Sony Starvis / 8.42M Pixels / 1/1.8”
Rear: Sony EXMOR R Starvis / 5.14M Pixels
Dimensions / Weight 64 x 111.5 x 32mm / 112g
Video Enhancement Technology

Wide Dynamic Range

Yes

Night Time Picture Correction

Yes

Intelligent Automatic Exposure

Yes

Noise Reduction

Yes

Advanced Video Clear

Yes

Super Night Vision 1.0

-

Super Night Vision 2.0

Yes
WiFi Yes
GPS Yes
G-Sensor Yes
Display Screen(Size) -
Super Capacitor / Battery Super Capacitor
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 2 CH 5.1W / 1 CH 3.1W (mean)
Voltage Detection / Cut Off Yes
Accessory Socket Power Adaptor Included in Single Camera Kit
Hard Wire Kit (HWC) Included in Dual Camera Kit
Mounting Type Adhesive
Dual Save Technology -
Thinkware Cloud

Live View

Yes

Geo Fence

Yes

Vehicle Location

Yes

Impact Notification

Yes

Video Storage

Yes
Camera Alerts

Fixed Speed Camera

Yes

Mobile Speed Camera Zone

Yes

Average Speed Camera Zone

Yes

Red Light Camera

Yes
Advanced Driver Alert System (ADAS)

Lane Departure

Yes

Urban Forward Collision

Yes

High Speed Forward Collision

Yes

Front Vehicle Departure

Yes
Recording Modes

Continuous Loop

Yes

Impact / Incident

Yes

Manual

Yes

Park Motion Detect

Yes (requires HWC)

Park Impact / Incident

Yes (requires HWC)

Park Time Lapse

Yes (requires HWC)

Park Energy Save

Yes (requires HWC)

Audio / Voice

Yes
Video Format MP4
Video CODEC H264
Audio CODEC HE-AAC
Memory Card Capacity / Class Supports up to 128GB / UH-1
Warranty 2 Years (on camera hardware, 12 months on micro SD)
Country of Manufacture Korea

Thinkware - CES 4K Dashcam

THINKWARE U1000 DASH CAM FEATURE VIDEO















SINGLE CAMERA KIT




DASH CAM




QUICK START GUIDE




MICRO SD CARD



(Capacity Model Dependent)


ADHESIVE CABLE CLIPS




SPARE 3M ADHESIVE




CPL FILTER








DUAL CAMERA KIT


DASH CAM




QUICK START GUIDE




MICRO SD CARD



(Capacity Model Dependent)


ADHESIVE CABLE CLIPS




SPARE 3M ADHESIVE




CPL FILTER
