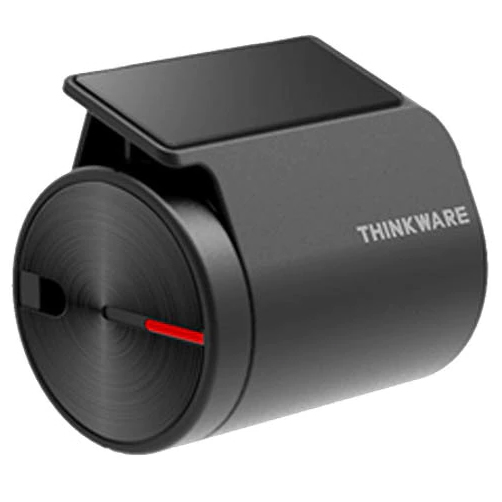

  3. U4KRADAR PARKING RADAR MODULE TO SUIT Q1000, U1000 & X1000 DASH CAMS

U4KRADAR PARKING RADAR MODULE TO SUIT Q1000, U1000 & X1000 DASH CAMS

EXTEND PARKING MODE FOR THE Q1000, U1000 & X1000 DASH CAMS!

Pair the Radar Module with the Q1000, U1000 or X1000 to extend its parking surveillance* duration while reducing power consumption when set to Energy Saving Mode 2.0. The Radar Module simply mounts on the front windscreen next to the dash cam and will detect motion which will allow the dash cam to prepare to save an event clip before point of impact. If impact is detected, a 20 second video (10 seconds before and 10 seconds after the impact) is saved in a dedicated folder on the MicroSD card. When no impacts are detected, the dash cam does not save the footage and resumes Energy Saving Mode 2.0.

(* Parking Surveillance mode requires Hard Wiring Cable (HWC) and installation.)

Features:
  • Compatible with the Q1000, U1000 & X1000 Dash Cams, when connected the dash cam can record longer and use less power during parking surveillance mode
  • When the Radar Module detects a movement, the dash cam wakes up and gets ready to record
  • If an impact is detected, a 20 second video (10 seconds before and 10 seconds after the impact) is saved in a dedicated folder on the MicroSD card
  • Extends the Parking Surveillance time up to 99.6 hours or 4 days
  • The Radar Module simply connects to the Dash Cam with a single cable and has an adhesive mount, making it easy to install on the front windscreen of the vehicle
Specs:
  • DETECTION DISTANCE RANGE: APPROX. 7m
  • DETECTION HORIZONTAL ANGLE RANGE: APPROX. 80 DEGREES
  • DETECTION VERTICAL ANGLE RANGE: APPROX. 35 DEGREES
  • DIMENSIONS (WxDxH): 48 x 36 x 42mm
  • WEIGHT: 57.4g
  • OPERATING TEMPERATURE: -30C-75C
  • NOTES:
    • Compatible with Q1000, U1000 &X1000 Dash Cams only.
    • Sedan or greater sized vehicle can be detected. People passing by will not be detected.
    • Due to the nature of Ultra-high Frequency radiation, the distance and degree of detection can be different.
    • Not every object is guaranteed to be detected.
    • Metal objects may cause the radar to not detect motion properly. Install Radar Module as far away as possible from metal parts of the rearview mirror/ADAS sensors.
Product Category:
Accessories



Thinkware Models associated with this Product:

Q1000

The Thinkware Q1000 Dash Cam captures True 2K QHD 1440P resolution front and rear with a wide field of view, providing the ultimate protection for your vehicle. SOS Alerts, live view, impact parking videos, parking image, vehicle status & driving history can all be accessed remotely via the ThinkwareConnected smartphone app. (Internet and Hotspot Connection Required).


U1000

THINKWARE’s dash cam model U1000 captures true 4K UHD resolution at the front and 2K QHD resolution at the rear, making it one of the highest resolution 2 channel dash cams in the market! Housed in a low profile and modern design, the U1000 brings to the table the latest Cloud Connected features including Live View, Locate Vehicle, Geo-Fencing and Impact Notifications, along with other important driver safety features such as ADAS and safety camera alerts.

X1000

Introducing Thinkware’s X1000 dash cam – Own the night with industry-leading front & rear 2K QHD cameras. We’ve set a new bar in the dash cam industry by pairing Sony’s IMX335 5.14MP STARVIS image sensor with an all-new proprietary lens design to produce a remarkable image quality no matter the time of the day. Coupled with Super Night Vision 3.0 technology, Energy Saving 2.0 in Parking Surveillance mode allows the X1000 to remain on the lookout for parking mishaps or hit-and-runs for up to 576 hours* even in dimly lit conditions such as dark parking lots. The bar has been set – Now it’s your turn to own the night


ARCD32

Introducing the Thinkare ARC Front and Rear Dash Camera Kit - a reliable and powerful dual-channel dash camera system designed to provide superior protection and surveillance for your vehicle. Featuring True 2K QHD resolution (2560 x 1440) for both the front and rear cameras, and a wide-angle 130-degree field of view, the ARCD32 ensures crystal-clear footage, capturing every detail on the road with unmatched clarity.
