F100
Powered by Sony Exmor imaging sensors, F100 records in full high definition 1080P (front) and high definition 720P (rear) at 30 frames per second. It is considered as one of the simple, easy to use, yet highly functional 2-channel capable dash cameras in the market right now. F100 sports G-Sensor Incident Detection that securely saves incident footage and when installed with the optional HWC, will also protect your vehicle when parked.
Dual Channel
Recording
Front-facing dashboard camera with rear camera input
High Definition
Video Recording
Clear and crisp video files be it daytime or nighttime
Video Enhancement Technology
High Dynamic Range (HDR)
| Dewarping Image Correction
135° Wide Angle
Field of View
Superb coverage that minimises blind spots at all times
Various Autonomous
Recording Modes
Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording
Comprehensive Driving
Information with GPS
Accurate vehicle speed reading and location tracking for peace of mind
*GPSANT required
Safety Camera Alerts
Timely Speed, Red Light Cameras and Mobile Speed Zones notifications
*GPSANT required
High Temperature
Protection (Integrated
Thermal Protection)
Unscathed SD card and video files even in the hottest environment
Fail Safe Recording
Ensures safe storage of recordings in case power gets disconnected after an accident
Memory Card
Format Free 2.0
Supports up to 64GB
PC Viewer
Proprietary THINKWARE
Dash Cam PC Viewer

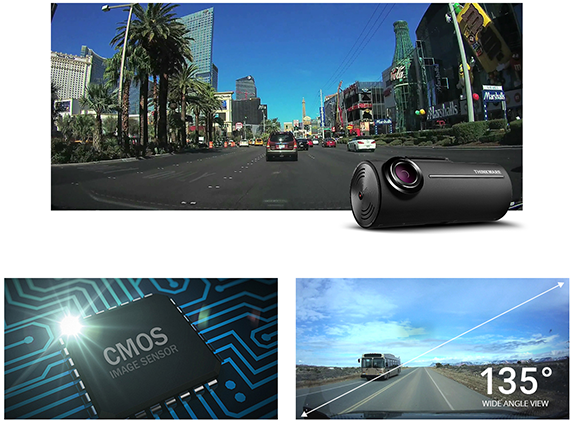

HIGH DEFINITION
VIDEO QUALITY
Equipped with CMOS Image Sensors, this lets you record crisp and clear full 1080p HD front and 720p rear cam videos be it daytime or nighttime. Even better, it sports a 135-degree wide angle lens view that minimises blind spots across the board.
DUAL
CHANNEL

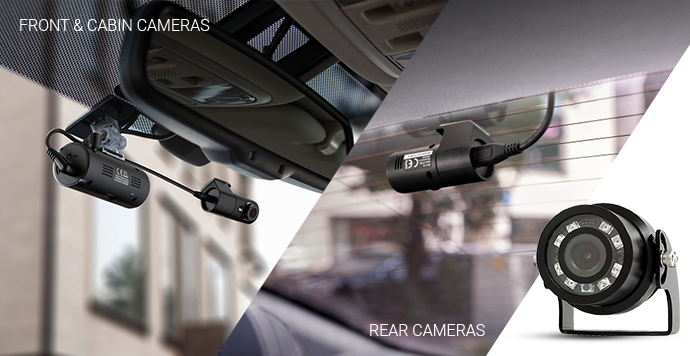

Equipped with an input for a second camera, this can take your surveillance capabilities to the next tier. Just add in the THINKWARE F100RA 720P HD rear camera to the mix to get peace of mind across the board, as doing so lets you keep an eye on what’s happening behind your vehicle. Alternatively, you can add in the THINKWARE In-cabin (F100IR) or External (F100WP) Cameras to the fold, especially if you’re in the transportation and logistics business. While F100IR’s ideal for operators who want in cabin-recordings such as taxis, trucks or fleet vehicles, F100WP provides blind-spot-free rear views for longer vehicles. Both come with Infrared LEDs so nighttime video recording won’t be an issue.
Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images. Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive. A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times. STATE-OF-THE-ART
VIDEO ENHANCEMENTS
Wide Dynamic Range (WDR)
Nighttime Picture Quality Correction
Automatic Exposure
VARIOUS AUTONOMOUS
RECORDING MODES
Continuous
Recording Mode
Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.
Event Recording
Mode
Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.
Manual
Recording Mode
Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.
Advanced Parking
Surveillance Mode
Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.
Audio / Voice
Recording
Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.
By adding in a genuine THINKWARE Dash Cam GPS Antenna (GPSANT) to the mix, this can help you keep track of the vehicle’s driving speed and precise location while identifying ideal routes on the map. The GPS also lets you accurately assess the details of the surrounding area and track your holiday routes for faster travels. In case of a road mishap, it supplies accurate readings of vehicle speed, time of the collision and the impact severity. *GPSANT required, sold separatelyCOMPREHENSIVE DRIVING INFORMATION
WITH GPS
This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the optional GPS antenna (GPSANT), it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.SAFETY CAMERA
ALERTS
*GPSANT required, sold separately

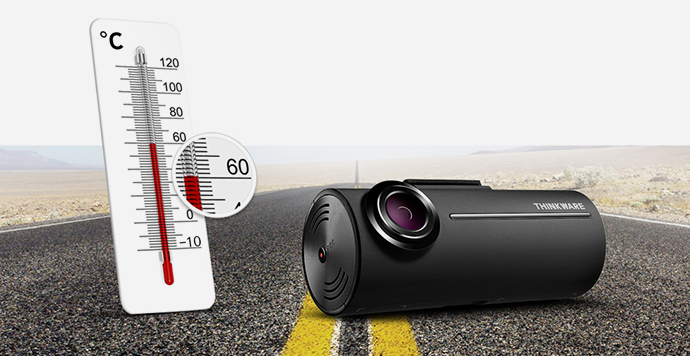

HIGH-TEMPERATURE
PROTECTION SYSTEM
Like all THINKWARE dash cams, it has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.
FAIL-SAFE
RECORDING
In case the power gets disconnected after an accident, the super capacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.
FORMAT-FREE 2.0
TECHNOLOGY
Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.
The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.PROPRIETARY THINKWARE DASH CAM
PC VIEWER
FULL SPECIFICATION
| Number of Channels | 2 |
|---|---|
| Resolution | Full HD 1080P (front) / HD 720P (rear) |
| Frames Per Second | 30 |
| Camera Angle | 135° (front) / 135° (rear) |
| Image Sensor / Camera Type | Front: Sony EXMOR / 2.12M Pixels / 5.78” CMOS Rear: 1M Pixel / 1/2.9” CMOS |
| Dimensions / Weight | 78 x 34.6 x 31.5mm / 42.4g |
| Video Enhancement Technology | |
|
Wide Dynamic Range |
Yes |
|
Night Time Picture Correction |
Yes |
|
Intelligent Automatic Exposure |
Yes |
|
Noise Reduction |
Yes |
|
Advanced Video Clear |
Yes |
|
Super Night Vision 1.0 |
- |
|
Super Night Vision 2.0 |
- |
| WiFi | - |
| GPS | Yes (requires GPSANT) |
| G-Sensor | Yes |
| Display Screen(Size) | - |
| Super Capacitor / Battery | Super Capacitor |
| High Temperature Protection | Yes |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Power Input | DC 12/24V |
| Power Consumption | 2 CH 3.25W / 1 CH 2.2W (mean) |
| Voltage Detection / Cut Off | Yes |
| Accessory Socket Power Adaptor | Included in Single Camera Kit |
| Hard Wire Kit (HWC) | Optional |
| Mounting Type | Adhesive |
| Dual Save Technology | - |
| Thinkware Connect | |
|
Live View |
- |
|
Geo Fence |
- |
|
Vehicle Location |
- |
|
Impact Notification |
- |
|
Video Storage |
- |
| Camera Alerts | |
|
Fixed Speed Camera |
Yes (requires GPSANT) |
|
Mobile Speed Camera Zone |
Yes (requires GPSANT) |
|
Average Speed Camera Zone |
Yes (requires GPSANT) |
|
Red Light Camera |
Yes (requires GPSANT) |
| Advanced Driver Alert System (ADAS) | |
|
Lane Departure |
- |
|
Urban Forward Collision |
- |
|
High Speed Forward Collision |
- |
|
Front Vehicle Departure |
- |
| Recording Modes | |
|
Continuous Loop |
Yes |
|
Impact / Incident |
Yes |
|
Manual |
Yes |
|
Park Motion Detect |
Yes (requires HWC) |
|
Park Impact / Incident |
Yes (requires HWC) |
|
Park Time Lapse |
- |
|
Park Energy Save |
- |
|
Audio / Voice |
Yes |
| Video Format | MP4 |
| Video CODEC | H.264 |
| Audio CODEC | PCM |
| Memory Card Capacity / Class | Supports up to 64GB / UH-1 |
| Warranty | 2 Years (on camera hardware, 12 months on micro SD) |
| Country of Manufacture | Korea |
SINGLE CAMERA KIT
DASH CAM
POWER CABLE
MOUNT
MICRO SD CARD
(Capacity Model Dependent)
ADHESIVE CABLE CLIPS
DUAL CAMERA KIT
DASH CAM
REAR CAM
MOUNT
MICRO SD CARD
(Capacity Model Dependent)
ADHESIVE CABLE CLIPS
