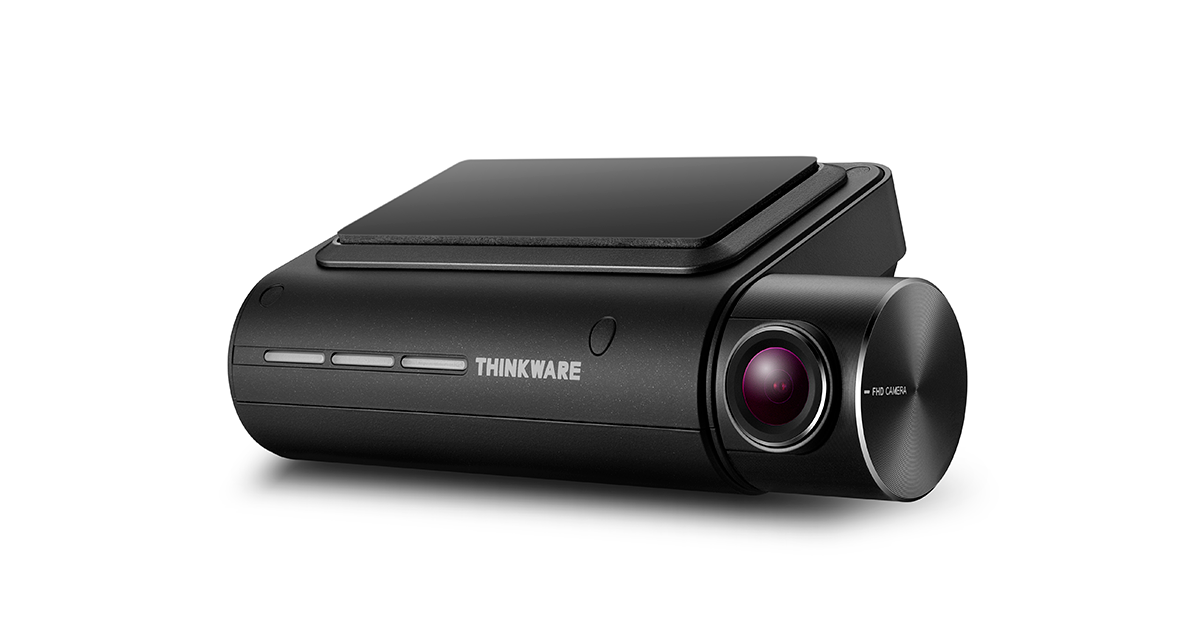

F800PRO
F800PRO features Sony Exmor R Starvis sensors for front and rear cameras, powered by Ambarella A12 processor; producing crystal-clear full high definition 1080P footage, even at nighttime via its Super Night Vision 2.0 technology that’s great for dark environments. Consuming less power compared to rival dash cams, F800PRO is preloaded with THINKWARE CONNECT, a cloud-based system with geo-fencing, vehicle locator and impact notifications.
Dual Channel
Recording
Front-facing dashboard camera with rear camera input
*Rear Cam Sold Separately
High Definition
Video Recording
Clear and crisp video files be it daytime or nighttime
*Rear Cam Sold Separately
Video Enhancement Technology
High Dynamic Range (HDR)
| Dewarping Image Correction
140° Wide Angle
Field of View
Superb coverage that minimises blind spots at all times
Various Autonomous
Recording Modes
Continuous Recording | Event Recording | Manual Recording | Advanced Parking Surveillance Mode (HWC Required) | Audio/Voice Recording
Thinkware
Cloud*
Geo Fence | Locate Vehicle | Impact Notification
* During continuous driving mode only. Internet and Hotspot Connection Required.
Built-in WiFi
Control, manage and update the firmware or click, download or delete recorded videos whenever needed via Thinkware™ app
Advanced Driver
Alert System (ADAS)
Lane Departure Warning System
(LDWS) | Forward Collision
Warning System (FCWS) |
Urban Forward Collision System
(uFCWS) | Front Vehicle
Departure Warning (FVDW)
Energy Save
Park Mode
Parking surveillance video recordings of up to 3 times longer
*HWC Required
Time Lapse
Park Mode
Lengthens parking surveillance
recording time
*HWC Required
Super Night Vision
2.0
Enables for enhanced
low light recording
Comprehensive Driving
Information with GPS
Accurate vehicle speed reading and location tracking for peace of mind
Safety Camera Alerts
Timely Speed, Red Light Cameras and Mobile Speed Zones notifications
High Temperature
Protection (Integrated
Thermal Protection)
Unscathed SD card and video files even in the hottest environment
Fail Safe Recording
Ensures safe storage of recordings in case power gets disconnected after an accident
Memory Card
Format Free 2.0
Supports up to 128GB
PC Viewer
Proprietary THINKWARE
Dash Cam PC Viewer

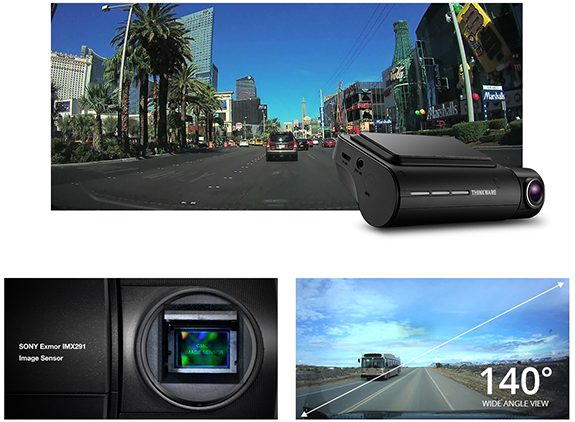

HIGH DEFINITION
VIDEO QUALITY
Equipped with CMOS Image Sensors, this lets you record crisp and clear full 1080p HD front and rear cam videos be it daytime or nighttime. Even better, it sports a 140-degree wide angle lens view that minimises blind spots across the board.

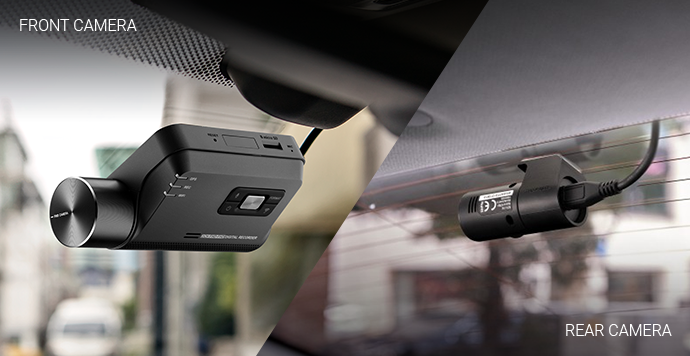

DUAL
CHANNEL
Equipped with an input for a second camera, this can take your surveillance capabilities to the next tier. Just add in the F800PRA 1080P HD rear camera to the mix to get peace of mind across the board, as doing so lets you keep an eye on what’s happening behind your vehicle, available as an optional extra, included in 2 channel kits.
Whether you’re driving under bright sunlight, heading out of a tunnel or getting under the shadow of a tall building, among others, its WDR feature helps get you through a sudden change in frontal light exposure levels that yield excessively bright or dark recordings. WDR does this by getting rid of overly bright spots and correcting colour balance to produce nothing but clear images. Images from videos recorded at nighttime on poorly-lit avenues, streets or roads generally don’t look that lucid. But with this, it’s an entirely different story. It’s armed with enhancement sensors that make brightness, colour and noise cancellation controls possible each time; hence, vivid video recordings of your evening drive. A sudden rise of light exposure brought about by intense sunlight or headlight beams from oncoming vehicles, or poor lighting in a tunnel may give any ordinary dash cam trouble capturing clear images but not THINKWARE dash cams. They come with an automatic light exposure function that controls light exposure levels for crisp footage at all times. STATE-OF-THE-ART
VIDEO ENHANCEMENTS
Wide Dynamic Range (WDR)
Nighttime Picture Quality Correction
Automatic Exposure
Using the latest Image Signal Processing (ISP) technology, which brings real-time image processing to the table, this captures images and records videos of up to 10 times brighter even in low-light environments like dark alleyways or underground parking lots for peace of mind.SUPER NIGHT VISION
2.0
VARIOUS AUTONOMOUS
RECORDING MODES
Continuous
Recording Mode
Automatically activates as soon as the engine starts, this function lets you record videos that are saved in one-minute segments via an auto-looping mechanism.
Event Recording
Mode
Active Impact Monitoring System, made possible by the built-in three-axis G-Sensor, automatically stores video data 10 seconds prior and after a collision.
Manual
Recording Mode
Similar to how a typical video camera works, you use this mode to record events in front of your vehicle, whether or not it’s in motion, as they happen.
Advanced Parking Surveillance + Time Lapse + Energy Save Park Mode
Paired with a genuine THINKWARE Hard Wire Cable kit (HWC), this can provide full surveillance capabilities whenever your vehicle is parked. It securely stores 20 seconds of footage (10 seconds before/after) once it detects motion or impact.
Audio / Voice
Recording
Not only does it capture vivid videos, but it also records crystal-clear audio. This enables you to enjoy top-tier comprehensive surveillance capabilities to the fullest, too.
ENERGY SAVE
PARK MODE
This feature significantly trims down your power consumption to up to 1/3 less, while giving you as much as 3x longer video recording capability. Serves you well when you’re on a vacation or you need to leave the vehicle unattended for quite some time, the Energy Save Parking Mode instantly puts the dash cam to sleep after capturing 20-second footage of an impact or motion detected by the G-Sensor.
*HWC required, sold separately
TIME LAPSE
PARK MODE
Records at 2 frames per second, the Time Lapse Park Mode makes it possible to reduce the video files’ size; hence, this can capture videos from your parked vehicle up to 16 times longer than other dash cams can. This ensures important clips or images will stay safe in it's memory for the long haul.
*HWC required, sold separately
THINKWARE
CLOUD*

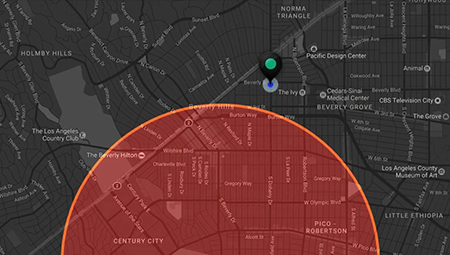

Geo Fencing*
Aside from alerting you about the vehicle’s whereabouts, Geo-Fencing lets you know whenever your vehicle goes inside or outside a certain area. This will send you a push notification via the THINKWARE CLOUD mobile app. Even better, the Geo-Fence’s radius can be set by typing in the address or simply using a pin point on the mobile app itself.
Locate Vehicle*
This helps you find the vehicle’s real-time position using its Locate Vehicle function. As it updates every 10 seconds, it displays the current location, driving speed information and the direction it’s headed with the help of the Google Map.
Driving Impact Notification*
Using the THINKWARE Cloud app, this sends an alert to the user’s smartphone, should the vehicle figure in a collision or accident. On the other hand, the owner’s registered contacts can be notified in case the driver gets involved in a car crash, as well.
* The Thinkware Cloud features will only work when the vehicle ignition is on and the dash cam is in Continuous Driving Mode. The Thinkware Cloud App must be downloaded to the Smartphone and an account must be registered. The dash cam must be connected via hotspot to a smartphone or wifi dongle that is located within the vehicle at all time to use the Cloud Features. This requires an internet connection with data available. Carrier fees and charges will apply.
Connect your Thinkware Dash Cam directly via Wifi to your iOS or Android Smartphone using the THINKWARE™ CLOUD App. Access CLOUD features, view footage, download recordings and manage dash cam settings all from your smartphone.BUILT-IN WIFI
SMARTPHONE APP CONNECTIVITY
Designed for distracted or drowsey drivers, the dash cam will alert you as soon as it senses you’re vehicle leaving the lane while driving at a speed of over 50 kilometres per hour. LDWS alerts you when leaving your lane to help keep any road misfortunes from ruining your trip or compromising you and your passengers’ safety. Keep a safe distance from the vehicle you’re following with the help of FCWS / uFCWS. Equipped with a state-of-the-art road safety warning system, it calculates the real-time distance between your vehicle and the automobile in front of you at a speed of over 30 kilometres per hour (km/h) (in expressways) and under 30 km/h in a busy, congested city. This dash cam issues a three-level early warning to the driver, depending on the danger of the possible collision. When stopped at an intersection or a traffic jam, this dash cam's Front Vehicle Departure Warning (FVDW) intelligent guidance system lets you know when the vehicle in front of you has already started moving, helping you stay attentive each time. Advanced Driver Alert System
Helps you stay safe on the road with alerts for lane departures, front vehicle departures, and potential forward collisions.
(ADAS)LDWS
Lane Departure Warning System
FCWS / uFCWS
High Speed / Urban Forward Collision Warning System
FVDW
Front Vehicle Departure Warning
Using the GPS data can precisely pinpoint the vehicle’s location and routes with its driving speed on the map on video playback. The GPS helps you accurately assess the status of the accident by providing you with the vehicle speed, the direction of the collision and the severity of impact. The dash cam not only records driving footage but can also be used to track and recall past driving routes whether it be work or holiday routes.COMPREHENSIVE DRIVING INFORMATION
WITH GPS
SAFETY CAMERA
ALERTS
This dash cam comes with various Safety Camera Alert functions aimed at helping drivers abide by traffic rules and regulations to avoid getting ticketed for an infraction. Through the built in GPS, it lets a driver know about a designated average speed camera & mobile speed zones and notifies drivers of upcoming fixed red-light and speed cameras.
HIGH-TEMPERATURE
PROTECTION SYSTEM
Like all THINKWARE dash cams, it has a built-in thermal sensor that protects it from getting hounded by the intense heat. Clad in a specially-designed heat discharge construction, the sensor automatically shuts it down to prevent overheating, allowing the dash cam to thrive even in the harshest Australian weather conditions.
FAIL-SAFE
RECORDING
In case the power gets disconnected after an accident, the supercapacitor-powered Fail-Safe Recording mode kicks in to ensure the safe and uninterrupted storage of any recording in progress at the time of the collision. Rest assured, these valuable files will be securely stored and stay accessible under any circumstances.
FORMAT-FREE 2.0
TECHNOLOGY
Format-free 2.0 Technology helps extend your memory card’s shelf life. Since this dash cam utilises the File Allocation Table (FAT) system, there’s no need for you to keep on formatting the card manually. Why? Because this mechanism automatically deletes older and less important files in the memory.
The intuitive and simple-to-use interface of THINKWARE DASH CAM allows you an easy and convenient viewing of your recorded videos. Through PC or Mac viewer, you can playback and download recorded videos along with your route history and speed record. You can also change the dash cam settings, format the memory card, or install updates with just a few clicks on the viewer.PROPRIETARY THINKWARE DASH CAM
PC VIEWER
FULL SPECIFICATION
| Number of Channels | 2 |
|---|---|
| Resolution | Full HD 1080P (front) / Full HD 1080P (rear) |
| Frames Per Second | 30 |
| Camera Angle | 140° (front) / 140° (rear) |
| Image Sensor / Camera Type | Front: Sony Starvis / 2.13M Pixels / 1/2.9” CMOS Rear: Sony EXMOR R Starvis / 2.13M Pixels |
| Dimensions / Weight | 107 x 60.5 x 30mm / 104.5g |
| Video Enhancement Technology | |
|
Wide Dynamic Range |
Yes |
|
Night Time Picture Correction |
Yes |
|
Intelligent Automatic Exposure |
Yes |
|
Noise Reduction |
Yes |
|
Advanced Video Clear |
Yes |
|
Super Night Vision 1.0 |
- |
|
Super Night Vision 2.0 |
Yes |
| WiFi | Yes |
| GPS | Yes (requires GPSANT) |
| G-Sensor | Yes |
| Display Screen(Size) | - |
| Super Capacitor / Battery | Super Capacitor |
| High Temperature Protection | Yes |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Power Input | DC 12/24V |
| Power Consumption | 2 CH 4.2W / 1 CH 2.9W (mean) |
| Voltage Detection / Cut Off | Yes |
| Accessory Socket Power Adaptor | Included in Single Camera Kit |
| Hard Wire Kit (HWC) | Included in Dual Camera Kit |
| Mounting Type | Adhesive |
| Dual Save Technology | - |
| Thinkware Connect | |
|
Live View |
- |
|
Geo Fence |
Yes |
|
Vehicle Location |
Yes |
|
Impact Notification |
Yes |
|
Video Storage |
Yes |
| Camera Alerts | |
|
Fixed Speed Camera |
Yes |
|
Mobile Speed Camera Zone |
Yes |
|
Average Speed Camera Zone |
Yes |
|
Red Light Camera |
Yes |
| Advanced Driver Alert System (ADAS) | |
|
Lane Departure |
Yes |
|
Urban Forward Collision |
Yes |
|
High Speed Forward Collision |
Yes |
|
Front Vehicle Departure |
Yes |
| Recording Modes | |
|
Continuous Loop |
Yes |
|
Impact / Incident |
Yes |
|
Manual |
Yes |
|
Park Motion Detect |
Yes (requires HWC) |
|
Park Impact / Incident |
Yes (requires HWC) |
|
Park Time Lapse |
Yes (requires HWC) |
|
Park Energy Save |
Yes (requires HWC) |
|
Audio / Voice |
Yes |
| Video Format | MP4 |
| Video CODEC | H264 |
| Audio CODEC | HE-AAC |
| Memory Card Capacity / Class | Supports up to 128GB / UH-1 |
| Warranty | 2 Years (on camera hardware, 12 months on micro SD) |
| Country of Manufacture | Korea |
SINGLE CAMERA KIT
POWER CABLE
QUICK START GUIDE
MICRO SD CARD
(Capacity Model Dependent)
ADHESIVE CABLE CLIPS
SPARE 3M ADHESIVE
DUAL CAMERA KIT
REAR CAM
QUICK START GUIDE
MICRO SD CARD
(Capacity Model Dependent)
ADHESIVE CABLE CLIPS
SPARE 3M ADHESIVE
